Product description

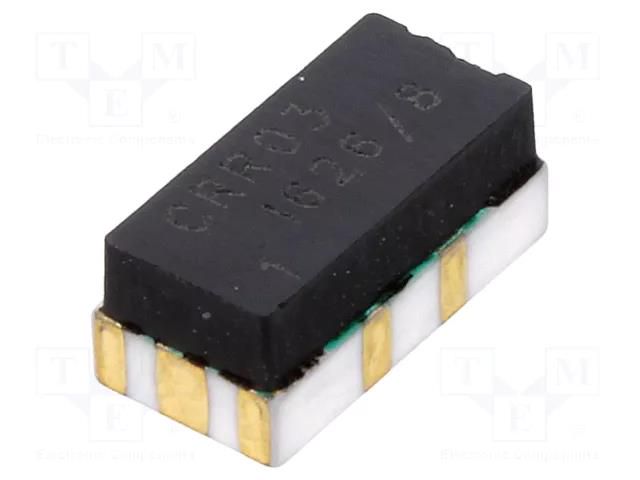

Relay: reed switch; SPST-NO; Ucoil: 3VDC; 0.5A; max.170VDC; 10W; 70Ω MEDER
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 3VDC; 0.5A; max.170VDC; 10W; 70Ω
Useful information
Supplier parameters
Product code
CRR03-1A
Supplier's product code
CRR03-1A
Product ID
U-155716
Body dimensions
4.4x8.6x3.55mm
Coil power consumption
167mW
Coil resistance
70Ω
Contact current max.
0.5A
Contacts configuration
SPST-NO
Manufacturer
MEDER
Manufacturer series
CRR
Mounting
SMD
Operate time
0.6ms
Operating temperature
-40...125°C
Rated coil voltage
3V DC
Release time
50µs
Switched voltage
max. 170V AC
Switching capacity
10W
Type of relay
reed switch
Brand
MEDER
