Product description

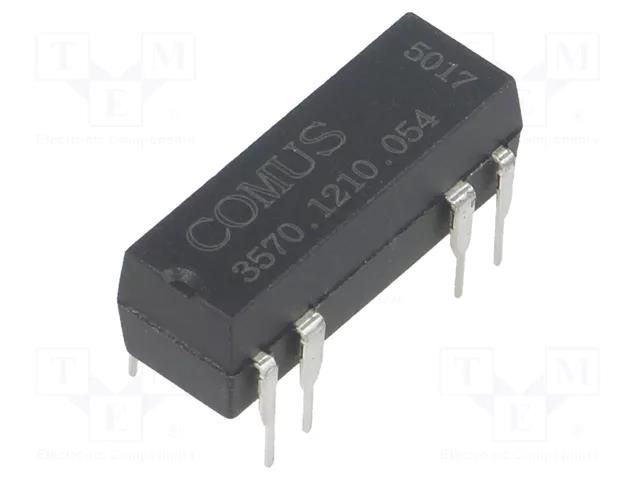

Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.150VDC; 10W COMUS
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.150VDC; 10W
Useful information
Supplier parameters
Product code
3570.1210.051
Supplier's product code
3570.1210.051
Product ID
U-83713
Body dimensions
19.5x6.9x6.9mm
Case
DIP14
Coil resistance
500Ω
Coil voltage max.
7V DC
Coil voltage min.
3.75V DC
Contact current max.
0.5A
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
COMUS
Manufacturer series
3570
Mounting
THT
Operating temperature
-20...85°C
Rated coil voltage
5V DC
Switched voltage
max. 150V DC
Switching capacity
10W
Terminal pitch
2.54mm
Type of relay
reed switch
Brand
COMUS
