Product description

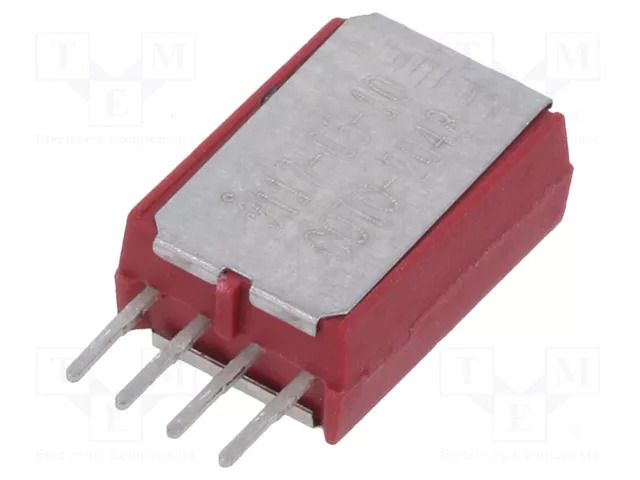

Relay: reed switch; SPST-NO; Ucoil: 5VDC; 0.5A; max.200VDC; 3W; THT COTO TECHNOLOGY
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 5VDC; 0.5A; max.200VDC; 3W; THT
Useful information
Supplier parameters
Product code
9117-05-10
Supplier's product code
9117-05-10
Product ID
U-2217165
Body dimensions
6.85x9.77x3.81mm
Case
SIP
Coil resistance
400Ω
Coil voltage max.
6V DC
Coil voltage min.
3.75V DC
Contact current max.
0.5A
Contact resistance
0.2Ω
Contacts configuration
SPST-NO
Manufacturer
COTO TECHNOLOGY
Manufacturer series
9117
Mounting
THT
Operating temperature
-20...85°C
Optional equipment
coaxial shield
Rated coil voltage
5V DC
Switched voltage
max. 200V DC
Switching capacity
3W
Terminal pitch
1.52mm
Type of relay
reed switch
Brand
COTO TECHNOLOGY
