Product description

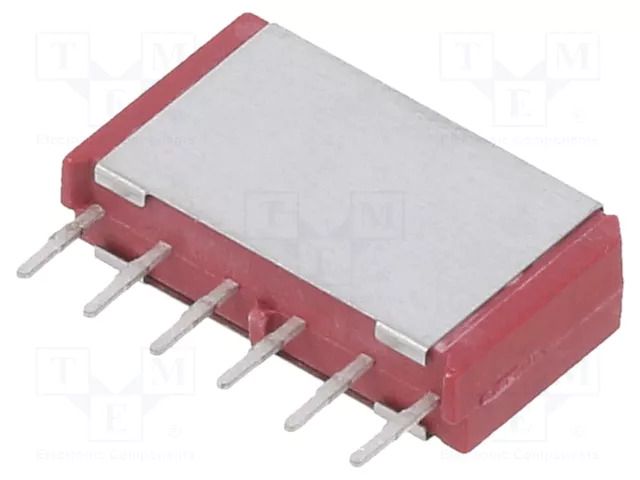

Relay: reed switch; SPST-NO; Ucoil: 5VDC; 0.5A; max.200VDC; 10W COTO TECHNOLOGY
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 5VDC; 0.5A; max.200VDC; 10W
Useful information
Supplier parameters
Product code
9092-05-11
Supplier's product code
9092-05-11
Product ID
U-2217163
Body dimensions
15.24x8.89x3.81mm
Case
SIP
Coil resistance
375Ω
Coil voltage max.
6.5V DC
Coil voltage min.
3.75V DC
Contact current max.
0.5A
Contact resistance
0.2Ω
Contacts configuration
SPST-NO
Manufacturer
COTO TECHNOLOGY
Manufacturer series
9092
Mounting
THT
Operating temperature
-20...85°C
Optional equipment
electrostatic shield
Rated coil voltage
5V DC
Switched voltage
max. 200V DC
Switching capacity
10W
Terminal pitch
2.54mm
Type of relay
reed switch
Brand
COTO TECHNOLOGY
