Product description

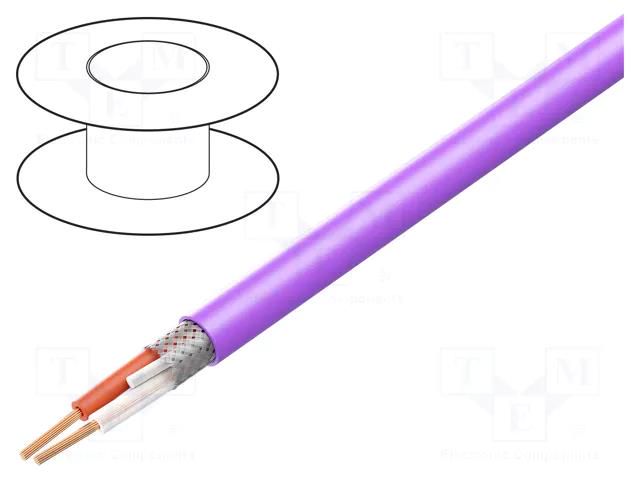

Wire; 1x2x0.34mm2; stranded; Cu; shielded,tinned copper braid HELU
Useful information
Specifications
SKU
U-2247299
Product code
CANBUS-1X2X0.34PUR
Supplier product description
Wire; 1x2x0.34mm2; stranded; Cu; shielded,tinned copper braid
Useful information
Supplier parameters
Cable application
power chain
Cable external diameter
6.9mm
Cable features
twisted pair conductors
Cable structure
1x2x0.34mm<sup>2</sup>
Core diameter
22AWG
Core marking
colours without colour repetition
Core section
0.34mm<sup>2</sup>
Core structure
stranded
CPR standard
no classification
Earth core
none
Insulation colour
violet
Kind of core
Cu
Kind of material
no flame propagation
Manufacturer
HELU
No. of pairs
1
Number of cores
2
Operating temperature
-30...70°C
Rated voltage
0.25kV
Resistance to
mechanical stesses
Shield structure
tinned copper braid
Type of wire
data transmission
Wire insulation material
PUR
Product code
CANBUS-1X2X0.34PUR
Supplier's product code
CANBUS-1X2X0.34PUR
Product ID
U-2247299
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
