Product description

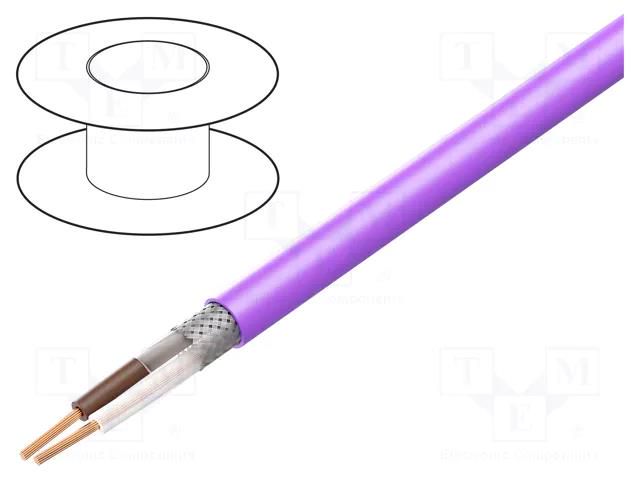

Wire; 1x2x0.75mm2; stranded; Cu; shielded,tinned copper braid HELU
Useful information
Specifications
SKU
U-2247300
Product code
CANBUS-1X2X0.75-IN
Supplier product description
Wire; 1x2x0.75mm2; stranded; Cu; shielded,tinned copper braid
Useful information
Supplier parameters
Product code
CANBUS-1X2X0.75-IN
Cable application
CAN bus
Cable external diameter
8.3mm
Cable features
twisted pair conductors
Cable structure
1x2x0.75mm<sup>2</sup>
Core diameter
18AWG
Core marking
colours without colour repetition
Core section
0.75mm<sup>2</sup>
Core structure
stranded
CPR standard
no classification
Earth core
none
Insulation colour
violet
Kind of core
Cu
Kind of material
no flame propagation
Manufacturer
HELU
No. of pairs
1
Number of cores
2
Operating temperature
-40...70°C
Rated voltage
0.3kV
Shield structure
tinned copper braid
Type of wire
data transmission
Wire insulation material
PVC
Supplier's product code
CANBUS-1X2X0.75-IN
Product ID
U-2247300
