Features of UT661 Series Pipeline Blockage Detectors
Series Pipeline Blockage Detector 35 m, UNI-T
Product Code: UT661D
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Products purchased together
Product description

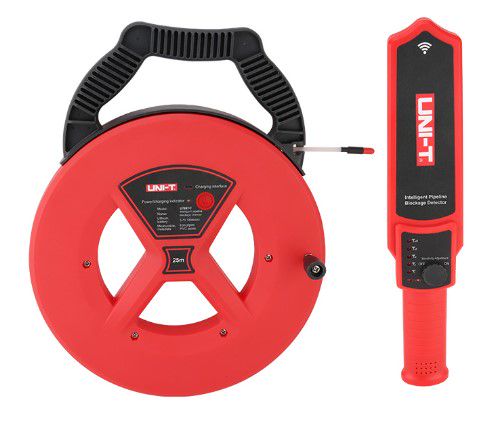

UT661 Series Pipeline Blockage Detectors
The UT661 series pipeline blockage detectors can quickly locate blockages clogging inside pipelines. They are able to detect pipes from a maximum distance of 50cm, the signal wire can be inserted into pipelines up to 25/35m for UT661C/D respectively. UT661 series are easily operable, and can be used to detect steel, iron, and pvc pipes.
Models in UT661 Series: UT661C, UT661D
Certificates: CE, RoHS
● The location of the blockage in the pipe can be detected
● Measurable pipe material: plastic pipes, metal pipes
● Maximum detection distance(depth): 50cm
● Buzzing prompt and Flash prompt
Specifications of UT661 Series Pipeline Blockage Detectors
|
Specifications |
UT661C |
UT661D |
|
Transmitter |
Yes |
Yes |
|
Signal wire |
25m |
35m |
|
Receiver |
Yes |
Yes |
|
Maximum detection distance（depth） |
50cm |
50cm |
|
Transmitter current |
Shutdown current: <2uA, working current: 230~310mA |
|
|
Receiver current |
Shutdown current: <2uA, standby current: <40mA |
|
|
Charging current |
450~550mA |
|
|
Test the output sound at a distance of 1cm |
>93dB |
|
|
Test the output sound at a distance of 0.5m |
>75dB |
|
|
Battery duration |
10 hours |
|
|
Operting temperature and humidity |
-20°C~60°C, 10~80%RH |
|
|
Measurable pipe material |
Plastic pipes, metal pipes |
|
|
Buzzing prompt |
Yes |
|
|
Flash prompt |
Yes |
|
|
Low battery indication |
Yes |
|
|
Waterproof grade |
Probe waterproof IP67 |
|
|
General Characteristics |
||
|
Transmitter battery |
Built-in lithium battery (3.7V 1800mAh) |
|
|
Receiver battery |
Built-in lithium battery (3.7V 1800mAh) |
|
|
Color |
Red and grey |
|
|
Weight |
Transmitter: 1.24KG |
Transmitter: 1.42KG |
|
External dimension |
Tansmitter: 38x30x42mm |
|
|
Standard accessories |
Charging cable, Probe kit |
|
|
Standard individual packing |
Gift box, English manual, Warranty card |
|
|
Standard quantity per carton |
5pcs |
|
|
Standard packing size |
405x90x350mm |
|
Specifications
SKU
422207
Weight
2.245 kg.
Barcodes
6935750566145
Height, mm
402
Brand
Width, mm
327
Product code
UT661D
Depth, mm
87
Description generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligence
Experimental product description generated by artificial intelligence
Series Pipeline Blockage Detector 35m, UNI-T
Product Category: PG7 Ordered goods NEW
Brand: UNI-T
The UNI-T Series Pipeline Blockage Detector is a reliable and efficient tool for locating obstructions within pipelines. This 35-meter range detector is ideal for various applications requiring precise blockage detection.
Key Features and Benefits
- Accurate Detection: Pinpoints the location of blockages with precision.
- Extended Range: 35-meter detection range covers significant pipeline lengths.
- Reliable Performance: Built for durability and consistent performance in demanding environments.
- Ease of Use: Designed for straightforward operation, minimizing training time.
- Time-Saving: Quickly identifies blockages, reducing downtime and repair costs.
Applications
This pipeline blockage detector is suitable for a wide range of applications, including:
- Plumbing and Drainage Systems
- Industrial Pipelines
- Underground Utility Locating
- Construction and Maintenance
Why Choose the UNI-T Series Pipeline Blockage Detector?
The UNI-T Series Pipeline Blockage Detector offers superior performance, reliability, and ease of use. Its extended range and accurate detection capabilities make it an invaluable tool for professionals requiring efficient and precise blockage location. Choose UNI-T for quality and dependability.
Technical Specifications
Please refer to the product manual for detailed technical specifications.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
