Product description
SignalTEK QT PRO 10G - Copper, Fiber and Wi-Fi Network Capacity Qualifier
The SignalTEK QT Pro tester is a 10G bandwidth qualifier that supports copper and fiber networks and enables Wi-Fi network diagnostics. Connecting to TREND AnyWARE Cloud allows remote reporting and analysis of test results.
Today's network designs require support for higher throughput, minimized latency, and increased end-user capacity. This is why 10 Gigabit Ethernet is becoming increasingly popular and the standard for designing future LANs. Furthermore, the growing number of fiber-optic and Wi-Fi networks requires precise, reliable, and scalable test solutions, which SignalTEK QT provides. SignalTEK QT Pro was designed specifically for today's copper, fiber-optic, and Wi-Fi networks.
Key features of the SignalTEK QT Pro tester:
- Copper cable throughput qualification - throughput qualification from 10Mb/s to 10Gb/s, including Multi-Gig speeds, along with connection map checking and fault location using the TDR method
- Qualification of fiber optic cable throughput - qualification of throughput from 10Mb/s to 100Gb/s based on attenuation and length measurement in accordance with the IEEE standard
- Scanning and using Wi-Fi channels - selecting a channel to identify its name, IP and MAC addresses, additionally checking the strength of each channel to be able to balance their use
- PoE Test - Verification that installed cables provide the appropriate power level for PoE devices through a load test up to 90W ensuring a Pass/Fail result compliant with the IEEE standard
- Network scanning - the ability to connect the device to an active copper/fiber/Wi-Fi network and search for all devices connected to the network along with their company names, IP and MAC addresses, as well as automatic detection of IP address conflicts
- Access Point Locator - Internal or external antenna and responsive signal strength indicator locate hidden access points.
TREND AnyWARE Cloud software offers:
- Works anywhere with a web browser - TREND AnyWARE Cloud works on PC, Mac and tablet devices (Android and iOS),
- Free storage - no need for separate servers or backup systems,
- Easy report sharing - all project files, including cable layout drawings, companies and photos, can be attached to the TREND AnyWARE Cloud,
- Fast troubleshooting - With TeamViewer integration, you can remotely connect to your SignalTEK QT tester, reducing troubleshooting time, streamlining collaboration, and minimizing calls.
Kit Contens:
SignalTEK QT Pro 10 Gigabit Copper & Fibre Qualification Tester. 10G copper/fibre qualifier with Wi-Fi (internal and external antennas), soft carry case, 1 x plug (male) copper remote – ID #1, 1 x socket (female) copper remote – ID #1, 1m Cat 6A shielded patch cord, 1 x 850nm MM high stability SFP module, 1 x LC-LC and 1 x LC-SC OM3 MM duplex patch cords, 1 x LC and 1 x SC multimode fibre loopback remotes, 2.5 & 1.25mm fibre cleaning pen, USB-C charger with changeable plugs.
Available SignalTEK QT tester models:
|
|
SignalTEK QT Pro Best bandwidth qualifier copper and fiber optic networks and Wi-Fi |
SignalTEK QT 10G Bandwidth Qualifier for copper networks |
|
Catalog number |
R166001 |
R166002 |
|
Cable length measurement and connection error detection using the TDR method (up to 12 remote units) |
COPPER |
COPPER |
|
Fiber optic connector length |
FIBER OPTIC |
x |
|
Copper Throughput Qualification - 10Mb/s, 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, 10Gb/s |
v |
v |
|
Fiber optic connector attenuation (dB) |
v |
x |
|
Integrated fault locator (VFL) with 2.5mm connector and 1.25mm connector adapter operating in continuous or modulated mode |
v |
x |
|
Fiber optic connector inspection microscope performing pass/fail testing based on the IEC 61300-3-35 standard |
Optional |
x |
|
Port information: speed, name, port number and address |
COPPER FIBER OPTIC |
COPPER |
|
Scanning Wi-Fi access points, detecting name conflicts and determining signal strength |
v |
v |
|
Wi-Fi network scanning with access point information, channel map, Tx/Rx data statistics, channel usage, ability to locate access points using an external antenna |
v |
x |
|
Real-time connection map |
v |
v |
|
Network diagnostics: ping, traceroute, network map, switch and port information, port count, port bandwidth usage history |
COPPER FIBER OPTIC Wi-Fi |
COPPER |
|
Identifying the most frequently used VLAN IDs (level 1-3) |
v |
x |
|
PoE load test: up to 90W, 802.3 af/at/bt compliant |
v |
v |
|
Available ports |
RJ45 test port, external Wi-Fi antenna |
RJ45 test port, Ethernet port, 2xUSB A, USB C |
|
Touch screen |
v |
v |
|
Internal memory for up to 2,500 test results |
v |
v |
|
Project management, test pre-configuration, results storage and transmission |
TREND AnyWARE Cloud Wi-Fi/RJ45 |
TREND AnyWARE Cloud Wi-Fi/RJ45 |
|
Remote access with TeamViewer and VNC |
v |
v |
|
The offer also includes sets and the option to exchange "old" for "new with a discount" |
v |
v |
TREND AnyWARE Cloud test management system makes managing, editing and sharing reports easier than ever for installers and technicians using TREND’s range of certification, qualification and verification testers.
Take back control and combine your cloud connected testers with this secure and simple-to-use test management portal. With TREND AnyWARE Cloud, you can easily share or access accurate test data from across your fleet anywhere, anytime, and produce the professional test reports that give your customers the confidence of a job well done.
Get TREND ANYWARE CLOUD for free!
Upload tests and generate reports even faster, for free. The TREND AnyWARE Cloud Test Management Software is now the fastest in the world and connects with TREND’s range of certification, qualification and verification testers including:
LANTEK IV
FiberTEK IV
signaltek 10g
poe pro
vdv ii
Remember, access to dependable test data is crucial to everything you do. If it’s inaccurate, slow to reach your project manager, or missing completely, there is a knock-on effect on time and cost. On every single project. AnyWARE Cloud solves this.
Depend on TREND Anyware Cloud
Benefit from real-time collaboration between Project Managers and Field Technicians. What’s more, Project Managers can pre-configure the jobs and tests in the TREND AnyWARE Cloud, eliminating potential mistakes and compressing the time taken to prepare reports for customers and warranties.
Access from anywhere on a PC, Mac or tablet (Android and iOS)
Secure and reliable cloud-based tool, hosted on Microsoft Azure
Eliminate errors on site by pre-configuring project information
Resolve issues fast and make investigations more efficient
Upload tests remotely without travelling to an office
Reduce call-backs Complete jobs more quickly

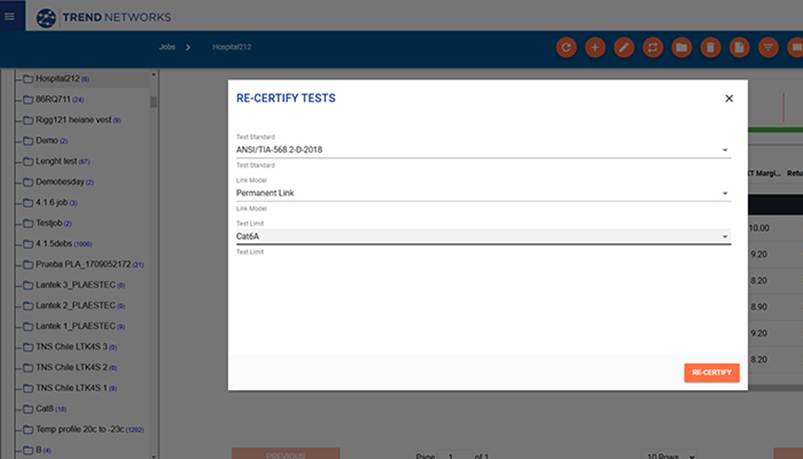

Re-certify with a touch of a button
TREND AnyWARE Cloud allows you to re-certify projects effortlessly, saving you time, money, and unsustainable callbacks.

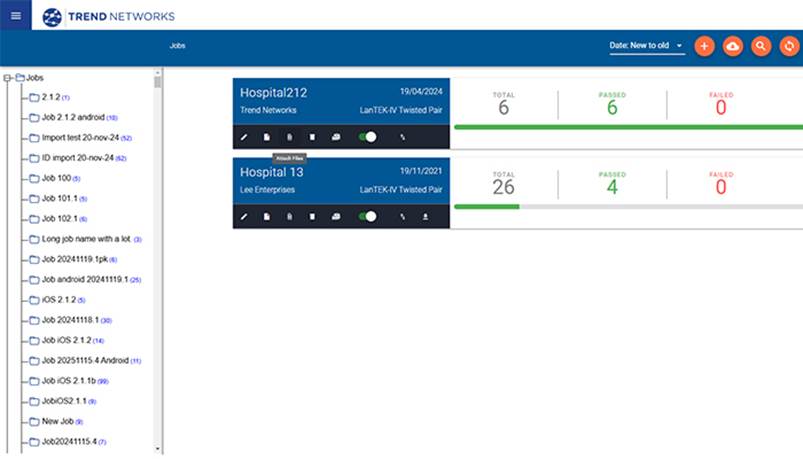

Easy to find project files
Attach all project files including cable layout drawings, videos, and photos into the TREND AnyWARE Cloud. Everything you need in one place.

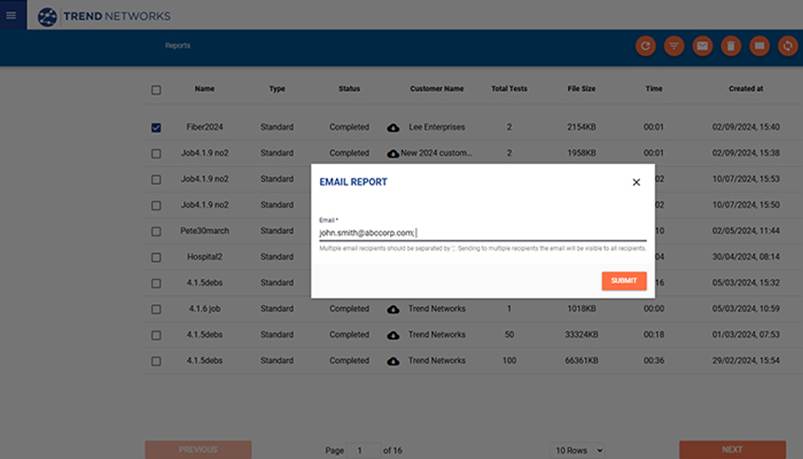

Easier to share reports
Use TREND AnyWARE Cloud to share links to the test reports eliminating the need to email large attachments.

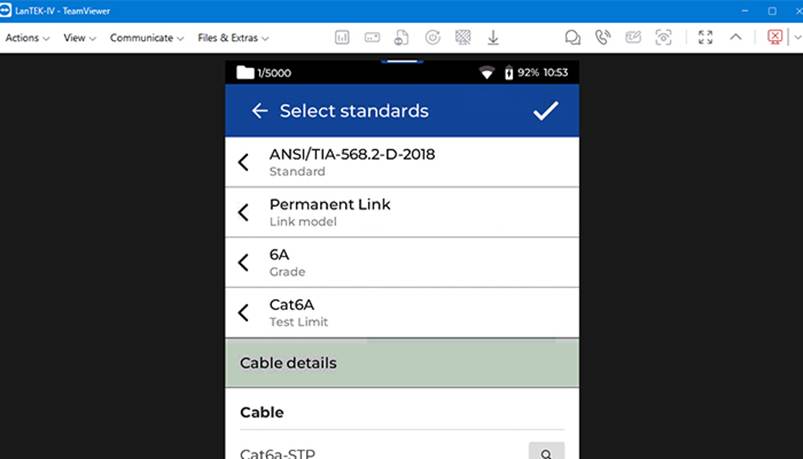

TeamViewer Live Support
Project Managers can connect to a LanTEK IV-L (for example) on the jobsite using TeamViewer to assist field technicians, streamlining troubleshooting time, increasing collaboration and reducing call-backs.
Easily manage your certifier fleet
Fleet manager allows you to see who has the certifier, when the results were last synced, view available software updates and when calibration is due. Allowing you to reduce tester downtime and ensure results are synchronised to the TREND AnyWARE Cloud and not lost or deleted.
Over-the-Air Software Updates
Software updates are installed directly from TREND AnyWARE Cloud using Wi-Fi, allowing testers to be updated in the field without the need for a PC and special software.
