Wire; H07V2-K; stranded; Cu; 1.5mm2; 16AWG; PVC; white; 450V,750V HELUKABEL
Product Code: H07V2-K150WH

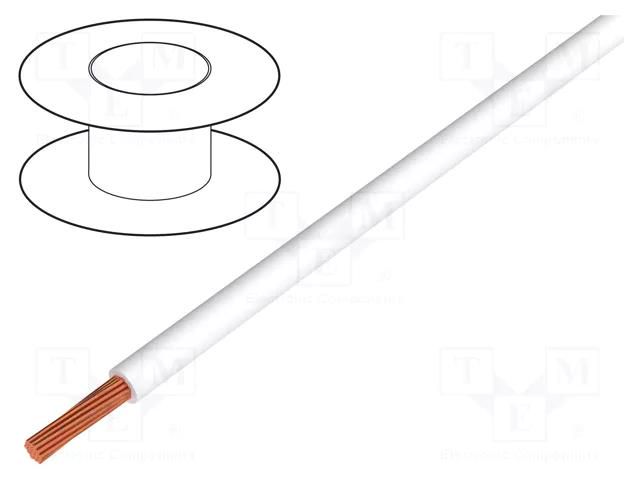

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Wire; H07V2-K; stranded; Cu; 1.5mm2; 16AWG; PVC; white; 450V,750V HELUKABEL
Useful information
Specifications
Supplier product description
Wire; H07V2-K; stranded; Cu; 1.5mm2; 16AWG; PVC; white; 450V,750V
Useful information
Supplier parameters
Brand
HELUKABEL
Supplier's product code
H07V2-K150WH
Product ID
U-200530
Cable external diameter
3.05mm
Cable structure
1x1.5mm<sup>2</sup>
Conform to the norm
UL 1015
Core diameter
16AWG
Core section
1.5mm<sup>2</sup>
Core structure
stranded
CPR standard
E<sub>ca</sub>
Flexibility class
5
Information
The UL Label and Mark on full factory packaging only
Insulation colour
white
Kind of core
Cu
Kind of material
no flame propagation
Kind of wire
H07V2-K
Manufacturer
HELUKABEL
Minimal wire bend radius
4xØ
Number of cores
1
Operating temperature
-40...90°C
Rated voltage
750V
Type of wire
assembly
Wire insulation material
PVC
Product code
H07V2-K150WH
