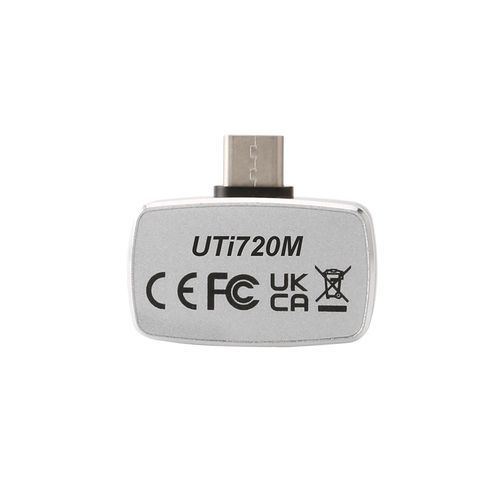

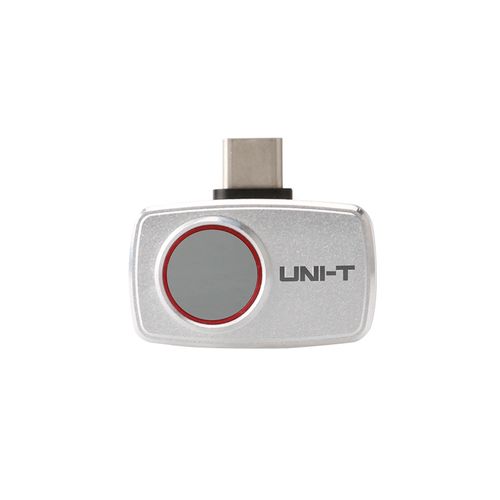

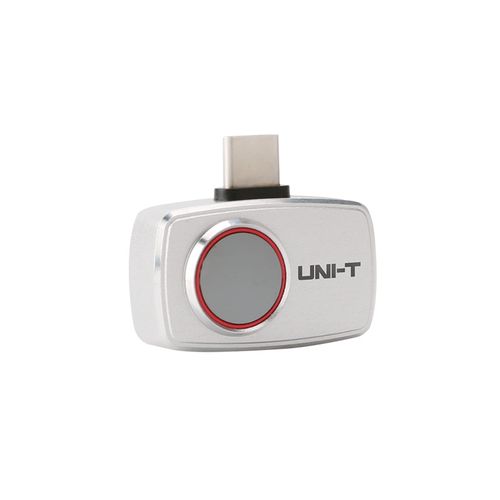

UTi720M
Smartphone Thermal Camera Module for Android
UTi720M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response. UTi720M is with wide temperature measurement range -20℃ ~ 200℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders, etc.
It can be equipped with macro lens UT-Z005 (Optional), the recommended distance is 4 cm.
Features :
- IR resolution: 256×192
- Temperature measurement range: -20℃ to 200℃ / -4℉ to 392 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On screen analyzer: 3 Points/3 Lines /3 Rectangles
- Image capture
- Video recording
- Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
- Phone: Android (USB Type-C interface)
- 1m extension cable
- 1m drop proof
Applications of UTi720M
PCBA inspection,power distribution cabinet inspection,house water leakage inspection,pipeline inspection, HVAC & Building inspection,Outdoor&night vision, etc.
· Product Specifications of UTi720M
|
Technical Data |
|
|
IR resolution (Pixels) |
256×192 |
|
Field of view(FOV) |
56.0°×42.2° |
|
Thermal sensitivity(NETD) |
≤50mK @25℃ |
|
Spatial resolution(IFOV) |
3.8mrad |
|
Frame rate |
≤25Hz |
|
Spectral range |
8~14µm |
|
Focus |
Focus free |
|
Lens focal length |
3.2mm |
|
Temperature measurement range |
-20℃ ~ 200℃ |
|
Accuracy |
±2° or ±2% whichever is greater |
|
Emissivity |
0.01~1.00 adjustable (0.95 default) |
|
Functions |
|
|
Color palettes |
7 |
|
Image modes |
Thermal,Fusion,PIP |
|
On screen analyzer |
3 Points/3 Lines/3 Rectangles |
|
Hi/Lo temperature alarm |
√ |
|
Video recording |
√ |
|
General Characteristics |
|
|
USB |
Type-C |
|
Drop proof |
1m |
|
Image/Video storage format |
JPEG, MP4 |
|
Certificates |
CE,UKCA,FCC,RoHS |
|
Product net weight |
12g |
|
Product size |
33mm×28.2mm×11.3mm |
|
Packing Details |
|
|
Standard accessories |
USB cable, English manual, Documents download operation guide card; |
|
Standard individual packing |
Gift box |
|
Standard Qty per carton |
20pcs |
|
Standard carton size |
290mm×265mm×325mm |
|
Standard carton G.W. |
4.4kg |
