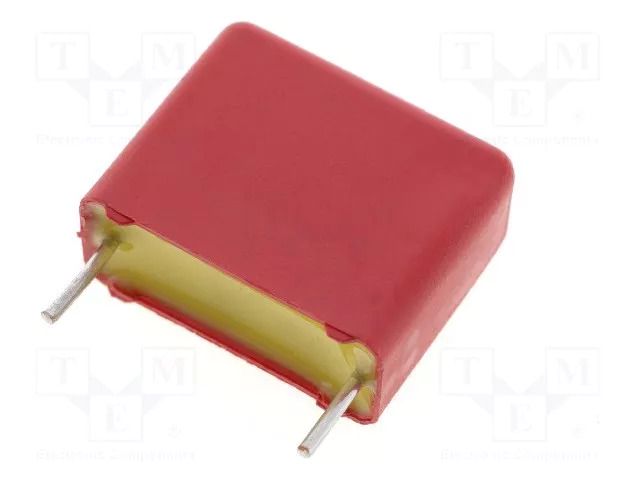

Capacitor: polypropylene; 100nF; Uoper: 6kVDC; Uoper max: 6000VDC WIMA
Product Code: FKP1-100N/6000/10%
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Capacitor: polypropylene; 100nF; Uoper: 6kVDC; Uoper max: 6000VDC WIMA
Useful information
Specifications
Supplier product description
Capacitor: polypropylene; 100nF; Uoper: 6kVDC; Uoper max: 6000VDC
Useful information
Supplier parameters
Product code
FKP1-100N/6000/10%
Body dimensions
35x50x41.5mm
Capacitance
0.1µF
Capacitor application
high frequency circuits
Capacitors features
low dielectric loss factor
Climate class
55/100/56
Flammability rating
UL94V-0
Kind of material
flame retardant
Manufacturer
WIMA
Max. operating voltage
700V AC
Mounting
THT
Operating temperature
-55...100°C
Operating voltage
6kV DC
Pulse resistance
13kV/μs
Terminal pitch
37.5mm
Type of capacitor
polypropylene
Tolerance
±10%
Brand
WIMA
Supplier's product code
FKP1-100N/6000/10%
Product ID
U-189493
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
