Product description

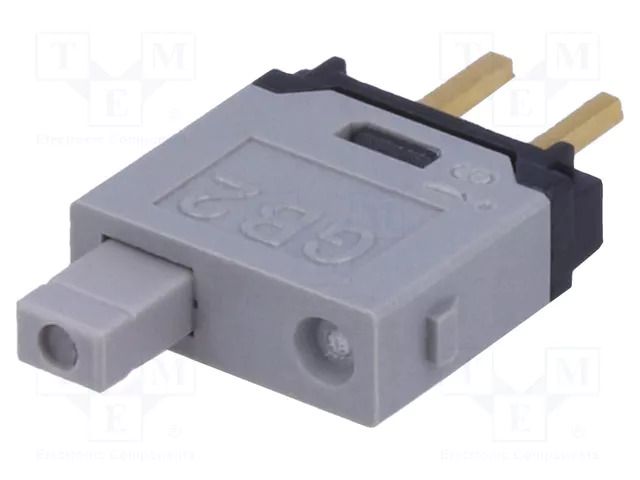

Switch: push-button; Pos: 2; DPDT; 0.01A/28VAC; 0.01A/28VDC; 500MΩ NKK SWITCHES
Useful information
Specifications
SKU
U-1930346
Product code
GB215AP
Supplier product description
Switch: push-button; Pos: 2; DPDT; 0.01A/28VAC; 0.01A/28VDC; 500MΩ
Useful information
Supplier parameters
Product code
GB215AP
Supplier's product code
GB215AP
Product ID
U-1930346
AC contacts rating @R
0.01A / 28V AC
Body dimensions
7x7x4.5mm
Contacts configuration
DPDT
DC contacts rating @R
0.01A / 28V DC
Electrical life
50000 cycles
Leads
for soldering
Manufacturer
NKK SWITCHES
Manufacturer series
GB
Max. contact resistance
:80mΩ
Mechanical durability
50000 cycles
Min. insulation resistance
500MΩ
Number of positions
2
Operating temperature
-30...85°C
Stable positions number
1
Switching method
ON-(ON)
Type of switch
push-button
Brand
NKK SWITCHES
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
