Product description

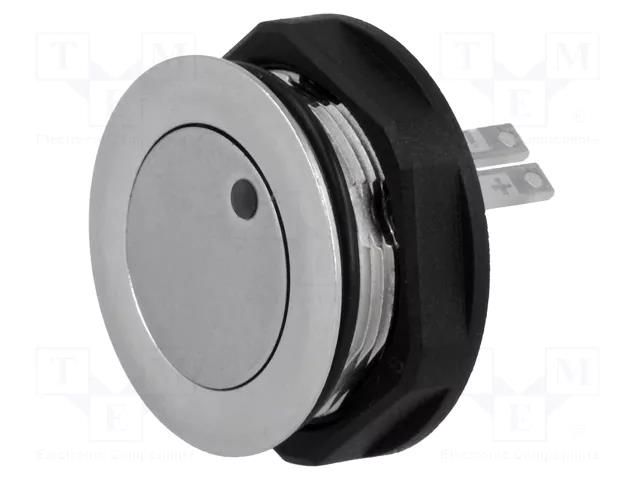

Switch: vandal resistant; Pos: 2; SPST-NO; 0.125A/48VDC; IP65 SCHURTER
Useful information
Specifications
Supplier product description
Switch: vandal resistant; Pos: 2; SPST-NO; 0.125A/48VDC; IP65
Useful information
Supplier parameters
Product code
1241.2858
Product ID
U-68121
Backlight colour
red/green
Body colour
silver
Body material
zinc alloy
Button material
stainless steel
Button shape
flat
Contact plating
silver plated
Contacts configuration
SPST-NO
DC contacts rating @R
0.125A / 48V DC
Diameter
21.5mm
Electrical life
1000000 cycles
Illumination
LED
IP rating
IP65
Leads
for soldering
Manufacturer
SCHURTER
Manufacturer series
MCS 19
Max. contact resistance
:50mΩ
Mechanical durability
1000000 cycles
Mechanical impact resistance
IK05
Mounting hole diameter
Ø19mm
Number of positions
2
Operating Force
3.7N
Operating temperature
-20...60°C
Panel thickness
max. 3mm
Plating material
nickel
Stable positions number
1
Switches features
colour change by changing polarization
Switching method
OFF-(ON)
Type of switch
vandal resistant
Brand
SCHURTER
Supplier's product code
1241.2858
