Product description
Specifications
Supplier product description

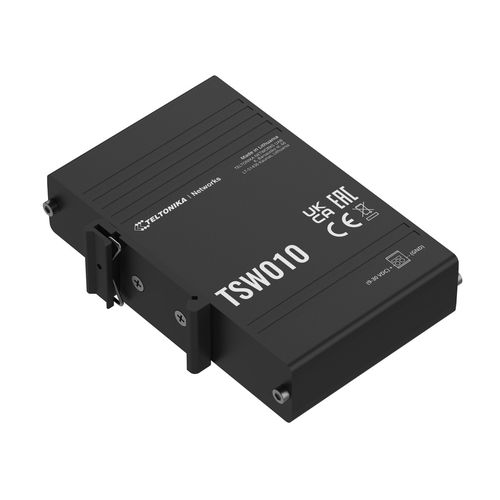

Affordable switch for industrial applications
Need a simple, easy-to-use switch without the hassle of installation or configuration? There's no need to look any further. The Teltonika TSW010 is designed as a plug-n-play switch, meaning it doesn't require a specially trained engineer to manually configure, monitor or manage. The front-facing ports and built-in DIN-rail mount are additional points that eliminate the need for additional mounting kits and ensure the smoothest possible installation of the device, even in the most complex environments.
Key features of Teltonika TSW010
Key features of Teltonika TSW010
- Industrial design, anodized aluminum housing
- Plug-n-Play without additional configuration
- Wide range of supported supply voltages
- Integrated DIN rail mount and surface mount options
- 5 Ethernet ports with speeds up to 100 Mbps
- Wide operating temperature range
100Mbps Ethernet ports
Teltonika's TSW010 switch is designed for machine-to-machine (M2M) communications, where high data rates are not required. A data rate of 100 Mbps is often more than sufficient, for example, in monitoring, control and management applications where large amounts of data are not transmitted. Therefore, with five 10/100 Ethernet ports, the TSW010 can equip your solution with network connectivity and speeds that are ideal for most industrial solutions. These ports are an important reason why this device is one of the most cost-effective on the market, ensuring that you don't overpay for features you won't need.
Switch for professional applications
Its wide range of supported supply voltages (9-30V) and robust design make it suitable for professional solutions.
Thoughtful design and ease of installation
The compact size and integrated DIN-rail mount allow for easy installation in a variety of industrial environments.
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Certification | CE, REACH, RoHS, WEEEUKCA, FCC, IC, CB, RCM |
| Depth | 80.5 |
| DIN rail mounting | Yes |
| Ethernet LAN data rates | 10,100 |
| Height | 27.4 |
| Housing material | Aluminium |
| Input voltage | 9 - 30 |
| International Protection (IP) code | IP30 |
| Jumbo frames | 2048 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| MAC address table | 2000 |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -40 - 75 |
| Packet buffer memory | 0.128 |
| Power connector | DC-in jack |
| Power consumption (max) | 0.9 |
| Power consumption (typical) | 0.3 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power source | DC/PoE |
| Product colour | Black |
| Switching capacity | 1 |
| Weight | 146.5 |
| Width | 113.1 |
