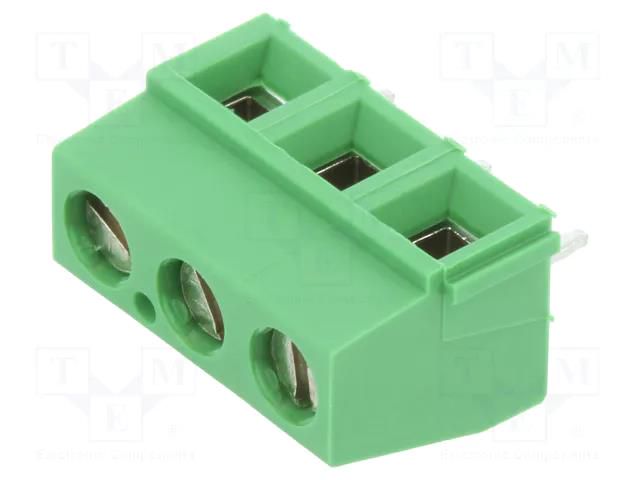

Connector: PCB terminal block; terminal; 13.5A; 300V; PIN: 3; green TE Connectivity
Product Code: 282837-3
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Connector: PCB terminal block; terminal; 13.5A; 300V; PIN: 3; green TE Connectivity
Useful information
Specifications
Supplier product description
Connector: PCB terminal block; terminal; 13.5A; 300V; PIN: 3; green
Useful information
Supplier parameters
Product code
282837-3
Supplier's product code
282837-3
Product ID
U-79134
Body material
polyamide
Colour
green
Conform to the norm
UL
Connector
terminal
Connector pinout layout
1x3
Connectors features
assembling possibility
Contact material
brass
Contact plating
tinned
Contacts pitch
5.08mm
Current rating
13.5A
Depth
8.2mm
Electrical mounting
screw terminal
Flammability rating
UL94V-0
Height
10mm
Length
15.24mm
Manufacturer
TE Connectivity
Mechanical mounting
on PCBs
Number of pins
3
Number of ways
3
Rated voltage
0.3kV
Spatial orientation
angled 90°
Type of connector
PCB terminal block
Wire cross-section
0.03...1.5mm<sup>2</sup>
Wire size
28AWG...16AWG
Brand
TE Connectivity
