Product description

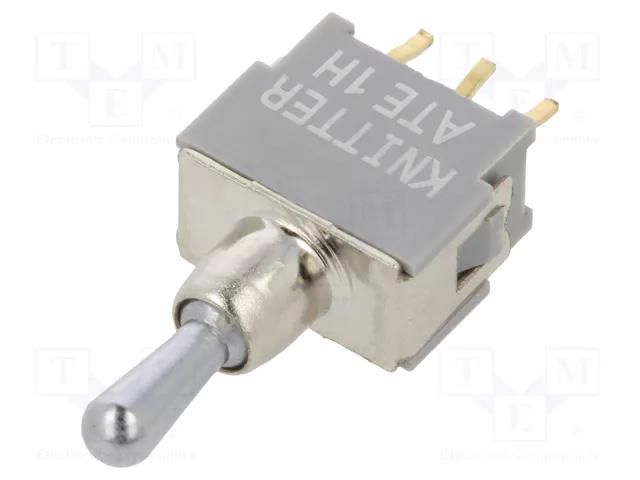

Switch: toggle; Pos: 3; SPDT; (ON)-OFF-ON; 0.05A; 0.05A; ATE; 50mΩ KNITTER-SWITCH
Useful information
Specifications
Supplier product description
Switch: toggle; Pos: 3; SPDT; (ON)-OFF-ON; 0.05A; 0.05A; ATE; 50mΩ
Useful information
Supplier parameters
Product code
ATE1H
Brand
KNITTER-SWITCH
Supplier's product code
ATE1H
Product ID
U-2357600
AC contacts rating @R
0.05A
Body colour
grey
Body dimensions
8x9.5x5mm
Body material
PBT
Button height
6.1mm
Button marking
blank
Button material
nickel plated brass
Contact plating
gold-plated
Contacts configuration
SPDT
DC contacts rating @R
0.05A
Electrical life
40000 cycles
Illumination
none
IP rating
IP67
Leads
flat pin
Manufacturer
KNITTER-SWITCH
Manufacturer series
ATE
Max. contact resistance
:50mΩ
Mounting
THT
Mounting hole diameter
9.5x5mm
Number of positions
3
Operating temperature
-20...85°C
Panel thickness
max. 4mm
Stable positions number
2
Switching method
(ON)-OFF-ON
Terminal pitch
2.54mm
Type of switch
toggle
