Product description

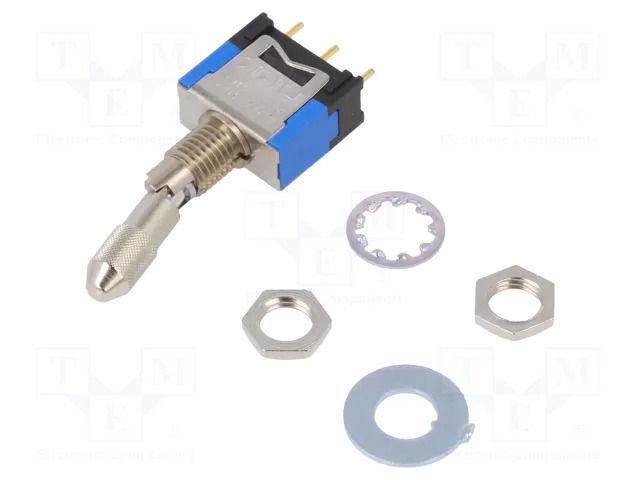

Switch: toggle; Pos: 2; SPDT; ON-ON; 0.1A/48VAC; 0.1A/48VDC; D2 NKK SWITCHES
Useful information
Specifications
Supplier product description
Switch: toggle; Pos: 2; SPDT; ON-ON; 0.1A/48VAC; 0.1A/48VDC; D2
Useful information
Supplier parameters
Product code
D22012LP
Brand
NKK Nikkai
Supplier's product code
D22012LP
Product ID
U-2412739
AC contacts rating @R
0.1A / 48V AC
Actuator material
brass
Body material
polyamide
Contact material
brass
Contact plating
gold-plated
Contacts configuration
SPDT
DC contacts rating @R
0.1A / 48V DC
Electrical life
50000 cycles
Illumination
none
Kind of toggle
round
Leads
for soldering
Lever length
5.1mm
Lever plating
chromium
Manufacturer
NKK SWITCHES
Manufacturer series
D2
Max. contact resistance
:50mΩ
Mechanical durability
50000 cycles
Min. insulation resistance
1GΩ
Mounting
on panel
Number of positions
2
Number of terminals
3
Operating temperature
-10...70°C
Poles number
1
Stable positions number
2
Switching method
ON-ON
Terminal pitch
5.08mm
Type of switch
toggle
