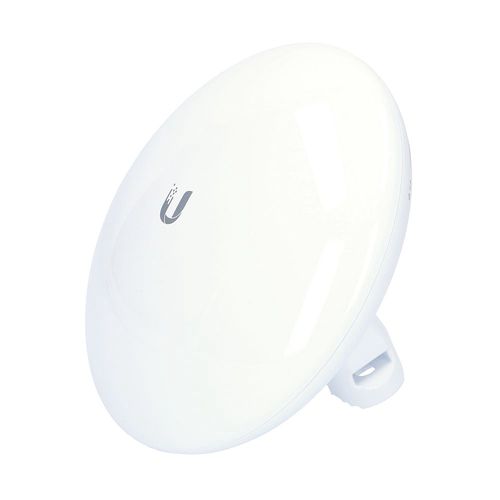

Ubiquiti NanoBeam M5 16dBi radio system
NBE-M5-16 is an 802.11n MIMO 2x2 radio system operating in 5GHz frequency band. The new Nanobeam design allows to focus RF power in a smaller beam and protect against interference from other devices and networks - this is especially important in areas with high noise.
Plug and Play mounting
NanoBeam can be mounted on various surfaces, including columns or walls, and offers freedom of tri-axial alignment. No screws are required for pole mounting and only one wall screw is required for wall mounting.
Amazing performance of the Beam antenna
The shape factor of the NanoBeam has the highest gain for its size. The excellent beam directivity provides the best performance in high noise environments.
Advanced software technology
Ubiquiti's airMAX is a proven technology with millions of implementations worldwide. It demonstrates exceptional performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Ubiquiti NBE-5AC-16 processor
Ubiquiti NanoBeam can work in Router or Brigde, Access Point, Access Point WDS, Client, Client WDS.
The device has Atheros MIPS 74KC processor with 560MHz clock, 64MB SDRAM, 8MB Flash memory and one 10/100 Ethernet port. Power supply can be provided via PoE, power supply is included.
Wall-mounting kit
The optional wall mount kit NBE-WMK provides greater stability when mounting NanoBeam on the wall.
