Product description

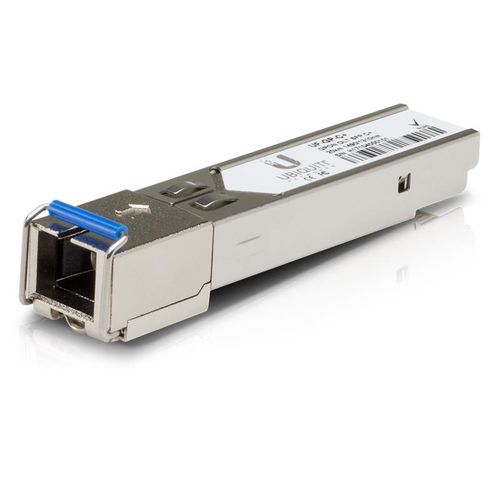

Ubiquiti UF-GP-C+ | SFP Module | UFiber, 1,25Gb/s, SC/UPC, TX 1490 nm, RX 1310 nm, Single mode, UBIQUITI
Specifications
Supplier product description
GPON SFP UF-GP-C+ module for Ubiquiti OLTs
Ubiquiti UF-GP-C+ is a single-mode GPON cartridge dedicated for Ubiquiti OLT terminals. The SFP GPON optical module transmits data using single-mode fibers over a distance of up to 20 km. Wavelengths are 1310 nm and 1490 nm and the optical power range is 3 to 7 dBm. SFP UF-GP-C+ inserts are equipped with SC/UPC connectors. Data is sent at 1.25 Gb/s and downloaded at 2.5 Gb/s.
Special features
Special features
- Single-mode fiber handling
- TX wavelengths: 1490 nm/ Rx: 1310 nm
- 1 SC/UPC socket
- Throughput: 2.5 Gb/s downstream, 1.25 Gb/s upstream
- Range 20 km
| Output connector | SC |
| SFP module - port speed | 1,25 Gbps |
| Transmission distance | 4-20km |
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Fiber type | SM (Single-Mode) |
| Harmonized System (HS) code | 85369010 |
| Interface type | SFP |
| Maximum data transfer rate | 2500 |
| Number of products included | 1 |
| Product colour | Metallic |
| Rx power (max) | -30 |
| Rx power (min) | -12 |
| Rx wavelength (max) | 1310 |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Tx power (max) | 7 |
| Tx power (min) | 3 |
| Tx wavelength (max) | 1490 |
| Type of SFP duplex | Wavy (WDM) |
| Wavelength | 1490 nm |
| Wavelength | 1310 nm |
| Wavelength | 1490 |
Supplier parameters
Product code
UF-GP-C+
Brand
UBIQUITI
Supplier's product code
UF-GP-C+
Product ID
U-3955979
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
