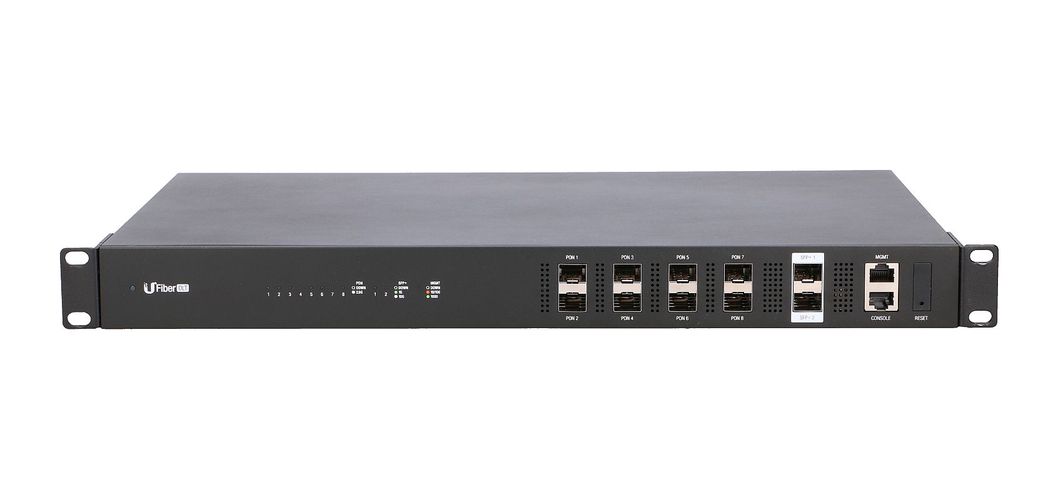

UF-OLT network terminal from Ubiquiti - service for over 1000 clients
UFiber offers Internet and telecommunication service providers a cost-effective system for delivering fiber optics to Triple Play services (data, voice, IPTV/ VoD) at speeds up to 2,488 Gbps (downstream) and 1,244 Gbps (upstream).
UFiber OLT has eight GPON ports and simultaneously serves up to 1024 clients with physical links of up to 20 km. Two SFP+ ports provide 10 G uplink connectivity. OLT also provides flexible power supply options, with two power supply modules, which can be equipped with AC/ DC or DC/ DC power modules. One AC/DC module is included, while additional modules can be purchased separately.
Power supply flexibility
The energy-efficient UF-OLT offers two bays for modular power supplies. The first one contains an AC/DC power module. The second bay can accommodate an optional power supply module, either a backup AC/DC module or a DC/DC power module.
UNMS software - UniFi OS Console
UNMS is a comprehensive management controller with a graphical user interface that is easy to remember and operate. UNMS manages all registered UF-OLTs and all their UF-Nano clients.
Designed for installation in a rack
The metal UF-OLT enclosure, 1U high, enables convenient installation in a standard 19" rack.
Special features of UF-OLT
Special features of UF-OLT
- (8) GPON SFP ports, (2) SFP+ ports
- Simultaneous clients: 1024 ONU
- GPON range: up to 20 km connection
- GPON speeds: 2,488 Gbps Upstream (TX), 1,244 Gbps Downstream (RX)
- Wave lengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)
- Maximum power consumption: 40 W
- Power method: 54VDC PSU module
- Can be mounted in 1U rack cabinets (optional)
| PON standard | GPON |
| 10G support | Yes |
| AC input voltage | 100 - 240 |
| Basic switching RJ-45 Ethernet ports type | None |
| Built-in processor | Yes |
| Certification | CE, FCC, IC |
| Console port | RJ-45 |
| Depth | 285.6 |
| Form factor | 1U |
| Harmonized System (HS) code | 85176990 |
| Height | 43.7 |
| Input voltage | 25 |
| Internal memory | 512 |
| Memory type | DDR3-SDRAM |
| OLT - Number of PON ports | 8 |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -10 - 45 |
| Power consumption (max) | 40 |
| Power supply included | Yes |
| Processor frequency | 880 |
| Product colour | Black |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Reset button | Yes |
| SFP module slots quantity | 8 |
| SFP+ module slots quantity | 2 |
| Switch type | Managed |
| Type of case | Rack (1U) |
| Type of case | Metal |
| Wavelength | 1490 |
| Web-based management | Yes |
| Weight | 4.4 |
| Width | 442.4 |
