Product description

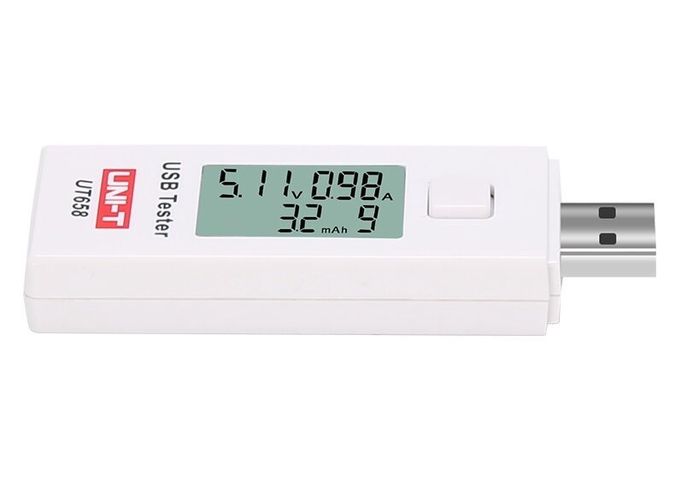

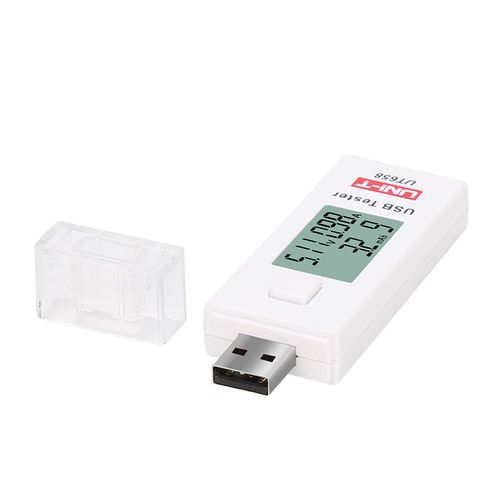

UT658 Series USB Testers
The second generation UT658 series USB testers can inspect USB chargers, portable power sources, USB type A and C cables and other electronic charging devices. UT658 measures output voltage, current, energy, capacity, circuit equivalent resistance, D+ and D- voltages of USB data cables. This series is designed to be precise, reliable, stable, and portable. They are great tools for applications such as manufacturing verification, engineering testing, and DIYers.
Models in UT658 series: UT658A, UT658C, UT658DUAL, UT658LOAD
Features of UT658 Series USB Testers
Certifications: CE, UKCA
● Type-A/C interface
● CE certification
● 10 sets of data storage
● Loop equivalent resistance measurement (1-480Ω)
● Same screen shows voltage, current, power, capacity, etc.
● Support fast charge protocol
Specifications of UT658 Series USB Testers
|
Specifications |
Description |
UT658A |
UT658C |
UT658DUAL |
UT658LOAD |
|
Input & Output ports (Type A) |
√ |
√ |
√ |
||
|
Input & Output ports (Type C) |
√ |
√ |
|||
|
Data/charging protocol |
2.0/3.0 |
2.0/4.0 |
2.0/(3.0/4.0) |
2.0/3.0 |
|
|
Voltage range |
4~24VDC, resolution: 0.01V |
√ |
√ |
√ |
√ |
|
Current range (Type-A) |
0.05~3ADC, resolution: 0.01A |
√ |
√ |
√ |
|
|
Current range (Type-C) |
0.05~5ADC, resolution: 0.01A |
√ |
√ |
||
|
Capacity |
0~99999mAh, resolution: 1mAh |
√ |
√ |
√ |
√ |
|
Energy |
0~1000Wh |
√ |
√ |
√ |
√ |
|
Circuit equivalent resistance measurement |
1~480Ω |
√ |
√ |
√ |
√ |
|
USB data cable voltage (D+, D-) |
0~3.3V |
√ |
√ |
√ |
√ |
|
Data storage |
10 sets |
√ |
√ |
√ |
√ |
|
Electrical load (UT658LOAD only) |
0.5A, 1A, 2A, 3A (Max power: 60W) |
√ |
|||
|
Maximum recording time |
99h, 59min, 59sec; resolution: 1s |
√ |
√ |
√ |
√ |
|
Fast charge protocol (Type-A) |
QC 3.0 fast charge protocol |
√ |
√ |
√ |
|
|
Fast charge protocol (Type-C) |
QC 4.0 fast charge protocol |
√ |
√ |
||
|
General Characteristics |
|||||
|
Product color |
White |
||||
|
Product net weight |
UT658A/C: 50.6g; UT658DUAL: 65.8g; UT658LOAD: 114.4g |
||||
|
Product size |
UT658A/C: 93mm x 45mm x 13mm; UT658DUAL: 93mm x 55mm x 13mm;UT658LOAD: 122mm x 53mm x 27mm |
||||
|
Standard individual packing |
Gift box, English manual |
||||
|
Standard quantity per carton |
60pcs |
||||
|
Standard carton measurement |
UT658A/C/DUAL: 280mm x 220mm x 225mm; UT658LOAD: 320mm x 300mm x 225mm |
||||
|
Standard carton gross weight |
UT658A/C: 4kg; UT658DUAL: 5.5kg; UT658LOAD: 9kg |
||||
Useful information
Specifications
Product description generated by artificial intelligence
UNI-T UT658 USB Tester: Your Comprehensive USB Analyzer
The UNI-T UT658 USB Tester, categorized under 'Others', is a professional-grade tool designed for in-depth analysis of USB devices and power supplies. This versatile device from the trusted UNI-T brand provides crucial insights into USB functionality, making it an essential asset for technicians, engineers, and anyone working with USB technology.
Key Features and Functions:
- Comprehensive USB Testing: Accurately assesses various aspects of USB performance.
- Identifies Potential Issues: Quickly pinpoints problems within USB connections and devices.
- Easy-to-Use Interface: Provides clear and concise readings for straightforward interpretation.
- Reliable Results: Delivers precise measurements for dependable diagnostics.
Applications:
The UT658 USB Tester finds applications in a wide range of scenarios, including:
- Troubleshooting USB Devices: Diagnose malfunctioning USB devices and identify the root cause of connectivity issues.
- Testing USB Power Supplies: Verify the voltage and current output of USB power adapters and charging stations.
- Quality Control: Ensure the consistent performance of USB devices during manufacturing or quality assurance processes.
- Research and Development: Assist in the development and testing of new USB-powered devices and peripherals.
Why Choose the UNI-T UT658?
The UNI-T UT658 USB Tester stands out due to its:
- Accuracy and Precision: Provides reliable and precise measurements for accurate diagnostics.
- Ease of Use: Its user-friendly design simplifies testing procedures, even for those without extensive technical expertise.
- Durability and Reliability: Built to withstand the rigors of daily use, ensuring long-term performance.
- UNI-T Quality: Backed by the reputation of UNI-T, a leading brand in electronic test equipment.
The UNI-T UT658 USB Analyzer – your essential tool for comprehensive USB testing and troubleshooting.
