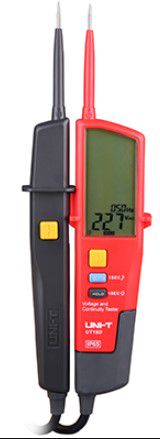

UT18D Voltage and Continuity Tester CATIII CATIV UNI-T

Name: UT18D Voltage and Continuity Tester CATIII CATIV UNI-T
Brand: UNI-T
SKU: 290428
Price: 61.5 EUR
Availability: InStock

Product Code: UT18D

Price range

Amount	Price with tax (pcs)
1	€61.50
2+	€57.20
wholesale

*Total delivery cost will be calculated in the checkout.

Warehouse in Europe

94%+ positive feedback

30 day money back guarantee

Product description

UT18 Series Voltage and Continuity Testers

UT18 series are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.

Models in UT18 Series: UT18C, UT18D

Features of UT18 Series Voltage and Continuity Testers

Certifications: CE, UKCA, cETLus

● RCD test (Operating voltage: 230V/50Hz~400Hz)
● Polarity detection: Positive & Negative

● Self-inspection: All LED or LCD

● Exceed voltage (voltage range: 713V~788V)

● Auto standby (standby current < 10μA)

● Silent mode: All range

● Work light

● Low battery indication: around 2.5V

Specifications of UT18 Series Voltage and Continuity Testers

Specifications	Range	UT18C	UT18D
Voltage (V)	6V		5V±1V
	12V	8V±1V	8V±1V
	24V	18V±2V	18V±2V
	50V	38V±4V	38V±4V
	120V	94V±8V	94V±8V
	230V	180V±14V	180V±14V
	400V	325V±15V	325V±15V
	690V	562V±24V	562V±24V
Phase rotation test	57Vac～400Vac (3 phase)	√	√
Phase rotation test	Frequency: 50Hz~400Hz	√	√
Single lead (L2) voltage detection	Operating voltage: 100V~690V	√	√
Single lead (L2) voltage detection	Frequency: 50Hz~400Hz	√	√
Continuity test	Resistance: 0Ω~100kΩ (+50% accuracy)	√	√
Continuity test	Beeper and LED light indication	√	√
RCD test	Operating voltage: 230V (50Hz~400Hz)	√	√
Polarity detection	Positive & Negative	√	√
Self-inspection	All LED or LCD	√	√
No power test	Operating voltage: 100~690V	√
Features
Voltage indication		LED	LCD
Exceed voltage	Voltage range: 713V~788V	√	√
Auto standby	Standby current＜10μA	√	√
Slient mode	All range	√	√
Work light		√	√
Low battery indication	Around 2.5V	√	√
LCD backlight			√
LCD display (voltage)	6V~690V	±(1.5%+5)	±(1.5%+5)
LCD display (Frequency)	40Hz~400Hz	±(3%+5)	±(3%+5)
IP65		√	√
General Characteristics
Power	1.5V battery (R03)×2
Display	UT18C: 31mm x 20mm; UT18D: 73.5mm x 35.5mm
Product color	Red and grey
Product net weight	280g
Product size (W x H x D)	272mm x 85mm x 31mm
Standard accessories	Batteries
Standard individual packing	Blister, English manual
Standard quantity per carton	30pcs
Standard carton measurement	440mm x 295mm x 455mm
Standard carton gross weight	17.5kg

Useful information

Specifications

SKU

290428

Weight

0.434 kg.

Barcodes

6935750518045

Warranty period (months)

Brand

UNI-T

Product code

UT18D

Screen limit

1999

Experimental product description generated by artificial intelligence

UT18D Voltage and Continuity Tester - Your Reliable Electrical Installation Multimeter

The UNI-T UT18D is a professional-grade voltage and continuity tester designed for electrical installations. This CAT III CAT IV rated multimeter offers a comprehensive suite of features for safe and efficient testing.

Key Features and Functions:

AC/DC Voltage Measurement: Measures both alternating and direct current voltages, providing accurate readings across a wide range.
Three-Phase AC Phase Indication: Quickly and safely identifies phase relationships in three-phase AC systems.
Frequency Measurement: Determines the frequency of AC signals.
RCD Testing: Tests residual current devices (RCDs) to ensure proper operation and safety.
Continuity Testing: Checks the continuity of circuits to identify breaks or shorts.
Single Test Pen Testing: Allows for quick voltage detection using a single test probe (for reference only).
Non-Battery Detection: Performs basic voltage detection even without a battery.
Illumination Function: Built-in flashlight for convenient use in low-light conditions.
Safety Features: Designed with safety in mind, including protective housing and overvoltage protection.

Why Choose the UT18D?

The UT18D combines accuracy, safety, and versatility in a compact and easy-to-use package. Its CAT III 690V and CAT IV 600V overvoltage protection makes it suitable for a wide range of applications, from household installations to industrial settings. The inclusion of features like RCD testing and three-phase indication enhances its value for professional electricians and technicians.

Applications:

Ideal for use in various environments, including:

Household electrical installations
Industrial settings
Electrical power departments
Maintenance and repair work

The UT18D is a robust and reliable tool that will enhance your efficiency and safety when working with electrical systems.
