Product description
UT210 Series Mini Clamp Meters
UT210 series mini clamp meters are designed to work well in limited space environments. These are essential tools for mechanical and electrical equipment maintenance, home appliance installation and electrician duties.
Models in UT210 series: UT210A, UT210B, UT210C, UT210D, UT210E
Features of UT210 Series Mini Clamp Meters
Certifications: CE, UKCA, cETLus
● Ergonomic and lightweight
● Auto range, 2~3 times/s sampling rate
● LCD backlight, data hold
● Auto power off, low battery indication
Specifications of UT210 Series Mini Clamp Meters
|
Specifications |
Range |
UT210A |
UT210B |
UT210C |
UT210D |
UT210E |
|
AC current (A) |
200A |
±(2.5%+20) |
±(2.5%+20) |
±(2%+10) |
±(2.5%+8) |
|
|
100A |
±(2.5%+5) |
|||||
|
DC current (A) |
200A |
±(2%+3) |
||||
|
100A |
±(2%+3) |
|||||
|
AC voltage (V) |
600V |
±(1%+3) |
±(1%+3) |
±(1%+3) |
||
|
DC voltage (V) |
600V |
±(0.7%+3) |
±(0.7%+3) |
±(0.7%+3) |
||
|
Resistance (Ω) |
20MΩ |
±(1%+2) |
±(1%+2) |
±(1%+2) |
||
|
Frequency (Hz) |
60kHz |
±(0.1%+4) |
||||
|
Capacitance (F) |
20mF |
±(4%+5) |
±(4%+5) |
±(4%+5) |
||
|
Temperature |
-40~1000℃ |
±(1%+3) |
±(1%+3) |
|||
|
-40~1832℉ |
±(1.5%+5) |
±(1.5%+5) |
||||
|
Features |
||||||
|
Display count |
2000 |
2000 |
2000 |
2000 |
2000 |
|
|
Continuity buzzer |
√ |
√ |
√ |
√ |
√ |
|
|
Auto range |
√ |
√ |
√ |
|||
|
Jaw opening |
16mm |
16mm |
17mm |
17mm |
17mm |
|
|
Diode test |
Around 3.0V |
√ |
√ |
√ |
||
|
General Characteristics |
||||||
|
Power |
1.5V battery (R03) x 2 |
|||||
|
Display |
39.3mm x 26.5mm |
|||||
|
Product color |
Red and grey |
|||||
|
Product net weight |
UT210A/B: 150g (batteries included); UT210C/D/E: 170g |
|||||
|
Product size |
UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm |
|||||
|
Standard accessories |

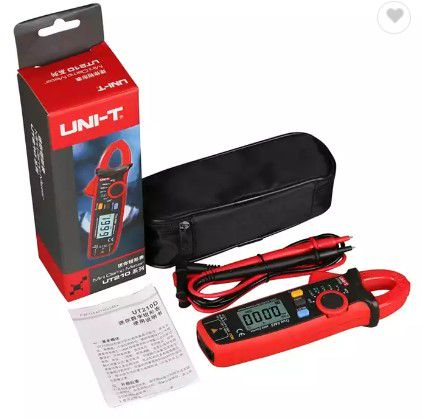

Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D) |
|||||
|
Standard individual packing |
Gift box, English manual, carrying bag (UT210C/UT210D/UT210E) |
|||||
|
Standard quantity per carton |
40pcs |
|||||
|
Standard carton measurement |
UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm |
|||||
|
Standard carton gross weight |
UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg |
|||||
Useful information
Specifications
Product description generated by artificial intelligence

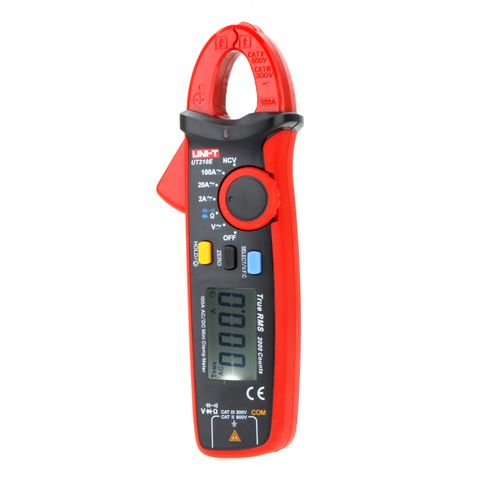

UNI-T UT210E Current Clamp Meter: A Comprehensive Guide
The UNI-T UT210E CATIII, CATIV continuity buzzer, diode, and resistance meter is a versatile and reliable tool for electricians and electrical engineers. This mini clamp meter combines high reliability, safety, precision, and a compact design, making it ideal for various applications.
Key Features and Functions
- AC/DC Current Measurement: Accurately measures both AC and DC currents with a maximum range of 100A.
- Voltage Measurement: Measures AC and DC voltages.
- Resistance Measurement: Tests resistance values.
- Continuity Buzzer: Quickly identifies continuous circuits.
- Diode Test: Checks the functionality of diodes.
- Non-Contact Voltage Detection (NCV): Detects the presence of AC voltage without physical contact.
- Data Hold Function: Freezes readings on the display for easy viewing.
- Backlight: Improves visibility in low-light conditions.
- Auto Power-Off: Conserves battery life.
- Safety Standards: Complies with relevant safety standards, including CATIII 300V and CATIV.
Applications
The UNI-T UT210E is suitable for a wide range of applications, including:
- Electrical maintenance and troubleshooting
- Automotive electrical system testing
- Industrial electrical work
- HVAC/R system diagnostics
- General electrical measurements
Why Choose the UNI-T UT210E?
The UNI-T UT210E stands out due to its:
- Accuracy and Reliability: Delivers precise and dependable measurements.
- Compact Design: Easy to handle and maneuver in tight spaces.
- Safety Features: Provides multiple safety features to protect the user.
- Versatility: Performs a variety of measurements with a single tool.
- Ease of Use: Simple and intuitive operation.
This UNI-T clamp meter is a valuable asset for any professional or hobbyist working with electrical systems. Its combination of features, accuracy, and safety makes it a top choice for various electrical testing needs.
