Digital Clamp Meter DC/AC 1000V; AC 1000A; 60MΩ; 60mF; 1MHz;
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

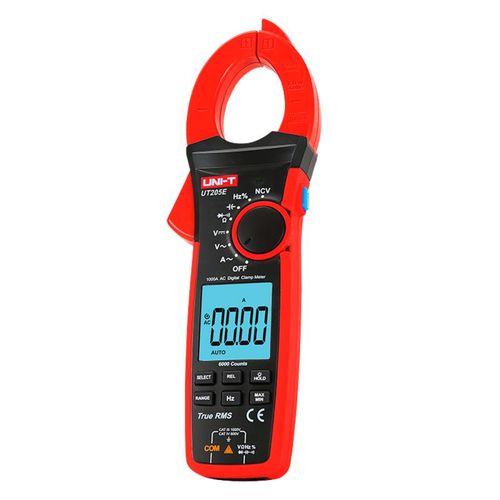

UT200 Series 1000A True RMS Digital Clamp Meters
UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current. The UT206B and UT208B also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe toextend the AC current measurement range to 3000A.
Models in UT200 series: UT205E, UT206B, UT207B, UT208B
Features of UT200 Series 1000A True RMS Digital Clamp Meters
Certifications: CE, UKCA, cETLus
● Flashlight button: Short press this button to turn on/off the flashlight
● NCV Multi-Segment Display and audio/visual alarm
● True RMS/Auto backlight
● NCV/Function retention
Specifications of UT200 Series 1000A True RMS Digital Clamp Meters
|
Specifications |
Range |
UT205E |
UT206B |
UT207B |
UT208B |
|
AC current (A) |
1000A |
±(2%+5) |
±(2%+5) |
±(2%+5) |
±(2%+5) |
|
DC current (A) |
1000A |
±(2%+5) |
±(2%+5) |
||
|
AC current frequency response |
50Hz~60Hz |
50Hz~60Hz |
40Hz~400Hz |
40Hz~400Hz |
|
|
Inrush current (A) |
1000A |
±(10%+10) |
±(10%+10) |
±(10%+10) |
|
|
AC voltage (V) |
1000V |
±(1.2%+3) |
±(1.2%+3) |
±(1.2%+3) |
±(1.2%+3) |
|
DC voltage (V) |
1000V |
±(0.5%+5) |
±(0.5%+5) |
±(0.5%+5) |
±(0.5%+5) |
|
Low pas filter (LPF ACV) |
1000V |
±(2%+5) |
±(2%+5) |
±(2%+5) |
|
|
AC voltage frequency response |
40Hz~400Hz |
40Hz~400Hz |
40Hz~400Hz |
40Hz~400Hz |
|
|
LoZ ACV |
1000V |
±(2%+5) |
±(2%+5) |
±(2%+5) |
|
|
Resistance (Ω) |
60MΩ |
±(1%+2) |
±(1%+2) |
±(1%+2) |
±(1%+2) |
|
Capacitance (F) |
60mF |
±(4%+5) |
±(4%+5) |
±(4%+5) |
±(4%+5) |
|
Temperature |
-40℃~1000℃ |
±(1%+2) |
±(1%+2) |
||
|
-40℉~1832℉ |
±(1%+4) |
±(1%+4) |
|||
|
Low voltage frequency (Hz) |
10Hz~1MHz |
±(0.1%+3) |
±(0.1%+3) |
±(0.1%+3) |
±(0.1%+3) |
|
Duty cycle (%) |
10%~90% |
±(2.6%+7) |
±(2.6%+7) |
±(2.6%+7) |
±(2.6%+7) |
|
Analog bar |
31 |
31 |
31 |
||
|
Flexible current probe (optional) |
Extends up to 3000A |
√ |
√ |
||
|
Zero mode |
√ |
√ |
|||
|
Display count |
6000 |
6000 |
6000 |
6000 |
|
|
Jaw opening |
42mm |
42mm |
42mm |
42mm |
|
|
General Characteristics |
|||||
|
Power |
1.5V battery (R03) x 3 |
||||
|
Display |
43mm x 45mm |
||||
|
Product net weight |
UT205E/UT206B: 465g; UT207B/UT208B: 420g |
||||
|
Product size |
272mm x 81mm x 43.5mm |
||||
|
Standard accessories |
Test leads, batteries, point contact temperature probe (UT206B/UT208B), English manual |
||||
|
Standard individual packing |
Gift box, carrying bag |
||||
|
Standard quantity per carton |
UT205E/UT206B/UT207B: 10pcs; UT208B: 5pcs |
||||
|
Standard carton measurement |
UT205E/UT206B/UT207B: 355mm x 330mm x 315mm; UT208B: 355mm x 330mm x 165mm |
||||
|
Standard carton gross weight |
UT205E/UT206B/UT207B: About 7.1kg; UT208B: About 4.5kg |
||||
Useful information
Specifications
Product description generated by artificial intelligence
UNI-T Digital Clamp Meter: Precise Measurement, Reliable Performance
This UNI-T Digital Clamp Meter, categorized under Meters and AC/DC Clamp Probes, is a versatile and robust tool designed for accurate measurements in various electrical applications. Its comprehensive features make it ideal for professionals and serious DIY enthusiasts alike.
Key Features and Specifications
- Voltage Measurement: DC/AC up to 1000V
- Current Measurement: AC up to 1000A
- Resistance Measurement: Up to 60MΩ
- Capacitance Measurement: Up to 60mF
- Frequency Measurement: Up to 1MHz
This clamp meter provides a wide range of measurement capabilities, ensuring you have the tools to tackle a variety of electrical testing tasks. The high accuracy and reliable performance make it a valuable asset for any electrician, technician, or hobbyist.
Applications
This UNI-T digital clamp meter is suitable for a broad spectrum of applications, including:
- Electrical troubleshooting and diagnostics
- Industrial maintenance and repair
- Automotive electrical system testing
- HVAC system analysis
- General electrical testing and measurement
Why Choose This UNI-T Clamp Meter?
This UNI-T digital clamp meter stands out due to its combination of precision, durability, and versatility. Its wide measurement range, coupled with its user-friendly design, makes it an efficient and reliable tool for any professional or serious hobbyist. Choose this meter for accurate readings and dependable performance in your electrical testing needs.
Product Overview
| Parameter | Value |
|---|---|
| Brand | UNI-T |
| Type | Digital Clamp Meter |
| Voltage | DC/AC 1000V |
| Current | AC 1000A |
| Resistance | 60MΩ |
| Capacitance | 60mF |
| Frequency | 1MHz |
This UNI-T current clamp meter is a must-have for anyone needing a reliable and accurate tool for electrical measurements. Its robust design and comprehensive features ensure long-lasting performance and ease of use.
