Product description
UT195 Series Professional Multimeters
UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.
Models in UT195 series: UT195E, UT195M, UT195DS
Features of UT195 Series Professional Multimeters
Certificates: CE, UKCA, GS, cTUVus
● IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
● Large 6000-count LCD screen
● True RMS
● ACV 750V 5kHz bandwidth
● Flashlight
● Auto LCD backlight controlled by light sensor (can be turned off)
● LoZ voltage test, for ghost voltage measurement
● 20A current measurement (max 30 seconds)
● 31 analog bar
Specifications of UT195 Series Professional Multimeters
|
Specifications |
Range |
UT195E |
UT195M |
UT195DS |
|
DC voltage (V) |
1000V |
±(0.5%+3) |
±(0.5%+3) |
±(0.5%+3) |
|
AC+DC |
750V |
±(0.7%+3) |
±(0.7%+3) |
±(0.7%+3) |
|
AC voltage (V) |
600V |
±(1.5%+4) |
||
|
LoZ ACV |
600V |
±(2%+3) |
±(2%+3) |
±(2%+3) |
|
DC current (A) |
20A |
±(0.8%+3) |
±(0.8%+3) |
±(0.8%+3) |
|
AC current (A) |
20A |
±(1%+3) |
±(1%+3) |
±(1%+3) |
|
Resistance (Ω) |
60MΩ |
±(0.8%+2) |
±(0.8%+2) |
±(0.8%+2) |
|
Capacitance |
60mF |
±(3%+5) |
±(3%+5) |
±(3%+5) |
|
Frequency |
60Hz~10MHz |
±(0.1%+4) |
||
|
60Hz~40MHz |
±(0.1%+4) |
±(0.1%+4) |
||
|
Duty cycle |
0.1%~99.9% |
±(2%+5) |
N/A |
±(2%+5) |
|
Temperature (°C) |
-40°C~1000°C |
±(1.5%+4) |
||
|
Temperature (°F) |
-40°F~1832°F |
±(2%+5) |
||
|
Features |
||||
|
Display count |
6000 |
6000 |
6000 |
|
|
Display interface (LCD) |
Single |
Single |
Dual |
|
|
Measurement sampling rate |
times/s |
3 |
3 |
5 |
|
Analog bar sampling rate |
times/s |
10 |
20 |
|
|
Analog bar |
31 sections |
√ |
√ |
|
|
True RMS |
√ |
√ |
√ |
|
|
AC voltage frequency response |
45~400Hz |
45~1kHz |
45~5kHz |
|
|
AC current frequency response |
45~400Hz |
45~1kHz |
45~5kHz |
|
|
3-phase motor sequence test |
600V |
√ |
√ |
|
|
Low pass filter |
1kHz 3dB attenuation |
√ |
||
|
Diode/Continuity test |
3.5V |
3V |
3V |
|
|
Peak hold |
250μs |
√ |
||
|
Auto/Manual range |
√ |
|||
|
Continuity buzzer |
√ |
|||
|
Low battery indication |
√ |
|||
|
Data hold/Auto power off |
√ |
|||
|
MAX/MIN |
√ |
|||
|
Function selection |
√ |
|||
|
Flashlight/Auto backlight |
√ |
|||
|
General Characteristics |
||||
|
Power |
9V battery |
|||
|
LCD size |
66mm x 51mm |
|||
|
Product color |
Red and grey |
|||
|
Product net weight |
437g |
|||
|
Product size |
195mm x 95 mm x 58mm |
|||
|
Standard accessories |
Test probes, battery, carrying bag, point contact temperature probe (UT195M) |
|||
|
Standard individual packing |
Gift box, English manual |
|||
|
Standard quantity per carton |
6pcs |
|||
|
Standard carton measurement |
580mm x 375mm x 215mm |
|||
|
Standard carton gross weight |
7.2kg |
|||
Useful information
Specifications
Product description generated by artificial intelligence

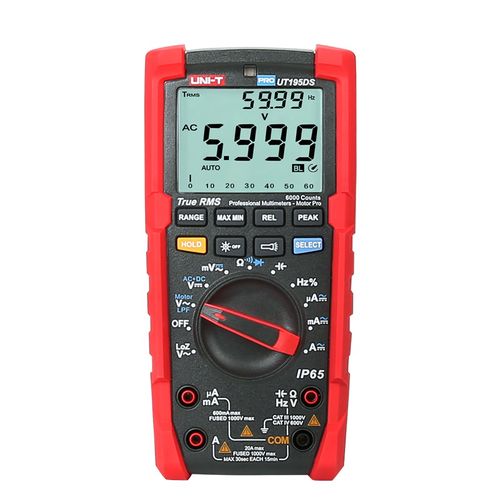

The UNI-T UT195DS Professional Multimeter is a reliable, safe, and durable hand-held industrial grade digital multimeter. It is designed with IP65 rating and 2 meter drop proof. It is a multimeter of 3 5/6 digit true RMS with large multiple display screen and auto ranged. It can measure AC/DC voltage or current, resistance, diode, circuit continuity, capacitance, frequency, duty ratio, temperature, and motor phase voltage. This multimeter is German GS certified.
Key Features:
- IP65 rating and 2 meter drop proof
- 3 5/6 digit true RMS
- Large multiple display screen
- Auto ranged
- Measures AC/DC voltage or current, resistance, diode, circuit continuity, capacitance, frequency, duty ratio, temperature, and motor phase voltage
- German GS certified
Why Choose the UNI-T UT195DS?
- Highly reliable, safe, and durable
- Full function measurement error protection
- True Root Mean Square (TRMS) AC voltage and current
- AC+DC measurement mode
- AC voltage peak capture
- LOW PASS FILITER guarantees precise measurement of voltage and frequency of variable speed drivers
- MOTOR TEST three phase rotation test
- LoZ voltage measurement
- Resistance, continuity and diode test voltage
- Capacitance range is 60.00mF
- Capture MAX/MIN, mean, and peak values
- Relative REL mode
- Manual and auto select range
- Auto backlight function
- Long battery life
The UNI-T UT195DS Professional Multimeter is a great choice for anyone who needs a reliable and accurate multimeter for a variety of applications. It is perfect for use in industrial, commercial, and residential settings.
