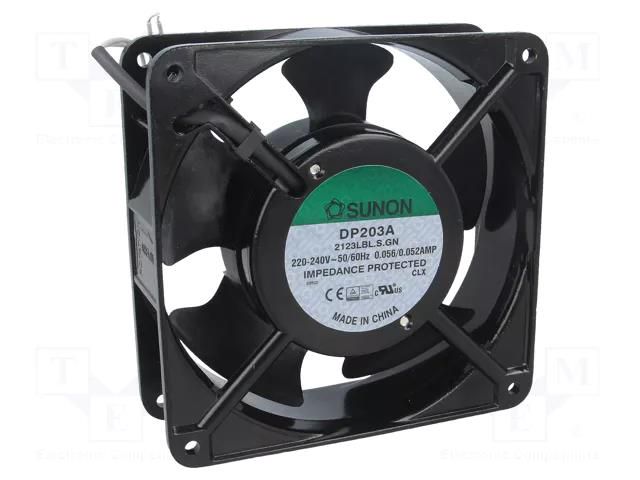

Fan: AC; axial; 230VAC; 119x119x38.5mm; 132.5m3/h; 39dBA; ball SUNON
Product Code: DP203A2123LBLS
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: AC; axial; 230VAC; 119x119x38.5mm; 132.5m3/h; 39dBA; ball SUNON
Useful information
Specifications
Supplier product description
Fan: AC; axial; 230VAC; 119x119x38.5mm; 132.5m3/h; 39dBA; ball
Useful information
Supplier parameters
Product code
DP203A2123LBLS
Supplier's product code
DP203A2123LBLS
Product ID
U-166834
Current and power consumption tolerance
±15%
Current rating
48mA
Enclosure material
aluminium
Fan dimensions
119x119x38.5mm
Fan efficiency
132.5m<sup>3</sup>/h
Flammability rating
UL94V-0
Frequency
50Hz
Impeller material
thermoplastic
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.31m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
500MΩ
Noise level
39dBA
Operating temperature
max. 70°C
Power consumption
8.2W
Rotational rate/speed
2300rpm
Supply voltage
230V AC
Type of fan
AC
Version
low power consumption
Wire size
24AWG
Brand
SUNON
