Fan: DC; axial; 12VDC; 60x60x25mm; 27.04m3/h; 16.7dBA; slide; 26AWG SUNON
Product Code: EE60251S3-999-A

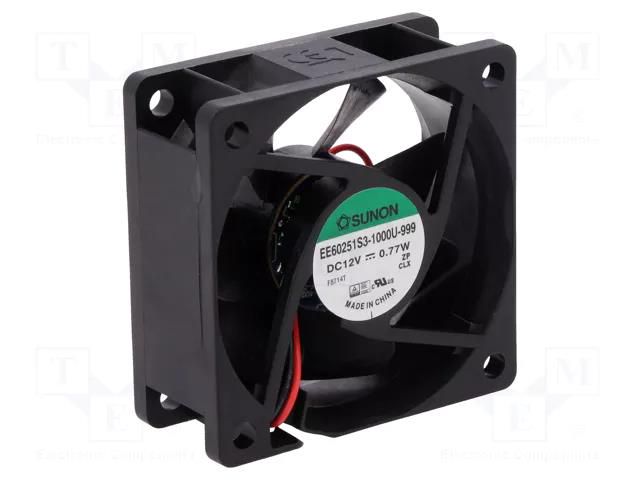

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 60x60x25mm; 27.04m3/h; 16.7dBA; slide; 26AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 60x60x25mm; 27.04m3/h; 16.7dBA; slide; 26AWG
Useful information
Supplier parameters
Product code
EE60251S3-999-A
Cable length
0.29m
Current and power consumption tolerance
±15%
Current rating
60mA
Enclosure material
thermoplastic
Fan dimensions
60x60x25mm
Fan efficiency
27.04m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
slide
Kind of fan
axial
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
16.7dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
0.77W
Related items
SRF4-30
Rotational rate/speed
3100rpm
Static pressure
2.54mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
26AWG
Brand
SUNON
Supplier's product code
EE60251S3-999-A
Product ID
U-176634
