Fan: DC; axial; 12VDC; 40x40x10mm; 9.13m3/h; 15.7dBA; Vapo; 5000rpm SUNON
Product Code: HA40101V4-G99-A

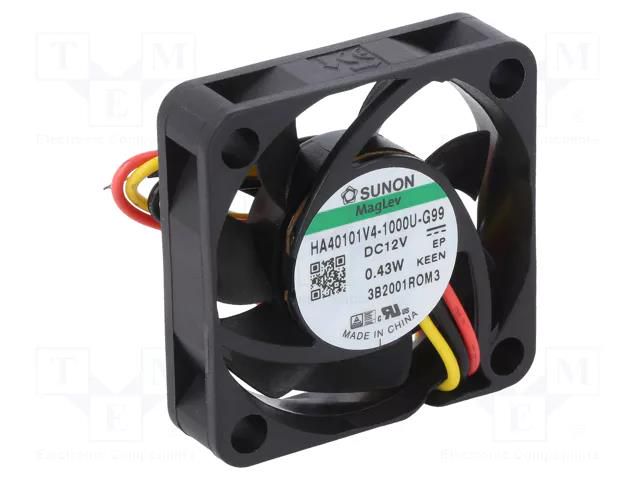

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 40x40x10mm; 9.13m3/h; 15.7dBA; Vapo; 5000rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 40x40x10mm; 9.13m3/h; 15.7dBA; Vapo; 5000rpm
Useful information
Supplier parameters
Product code
HA40101V4-G99-A
Supplier's product code
HA40101V4-G99-A
Product ID
U-201266
Additional functions
autorestart
Current rating
31mA
Enclosure material
thermoplastic
Fan dimensions
40x40x10mm
Fan efficiency
9.13m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.3m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
15.7dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
0.43W
Rotational rate/speed
5000rpm
Static pressure
2.28mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
26AWG
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
