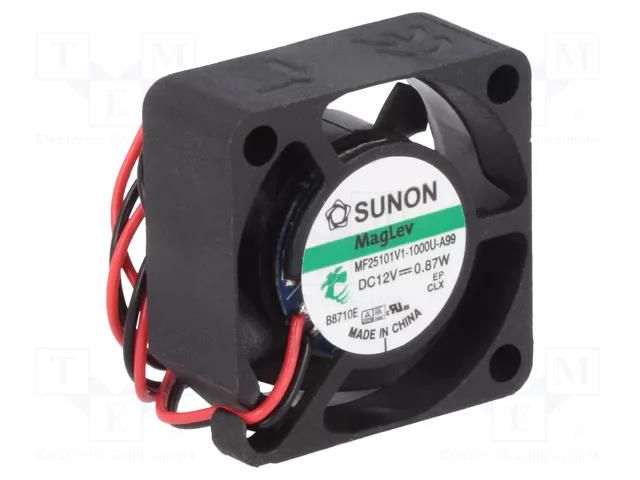

Fan: DC; axial; 12VDC; 25x25x10mm; 6.42m3/h; 26dBA; Vapo; 14000rpm SUNON
Product Code: MF25101V1-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 25x25x10mm; 6.42m3/h; 26dBA; Vapo; 14000rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 25x25x10mm; 6.42m3/h; 26dBA; Vapo; 14000rpm
Useful information
Supplier parameters
Product code
MF25101V1-A99-A
Brand
SUNON
Supplier's product code
MF25101V1-A99-A
Product ID
U-255942
Additional functions
Autorestart
Current rating
50mA
Enclosure material
thermoplastic
Fan dimensions
25x25x10mm
Fan efficiency
6.42m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.15m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
26dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
0.6W
Rotational rate/speed
14000rpm
Static pressure
6.86mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
28AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
