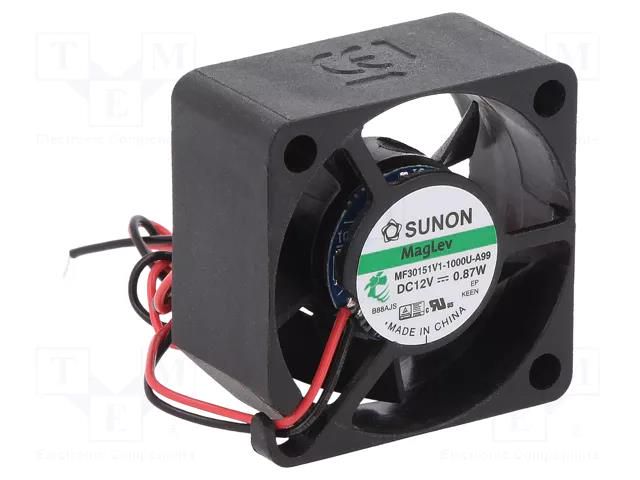

Fan: DC; axial; 12VDC; 30x30x15mm; 10.14m3/h; 27dBA; Vapo; 9500rpm SUNON
Product Code: MF30151V1-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 30x30x15mm; 10.14m3/h; 27dBA; Vapo; 9500rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 30x30x15mm; 10.14m3/h; 27dBA; Vapo; 9500rpm
Useful information
Supplier parameters
Product code
MF30151V1-A99-A
Brand
SUNON
Supplier's product code
MF30151V1-A99-A
Product ID
U-255967
Additional functions
autorestart
Current rating
65mA
Enclosure material
thermoplastic
Fan dimensions
30x30x15mm
Fan efficiency
10.14m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.145m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
27dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
0.78W
Rotational rate/speed
9500rpm
Static pressure
4.32mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
28AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
