Fan: DC; axial; 5VDC; 50x50x10mm; 23.32m3/h; 30.7dBA; Vapo; 5800rpm SUNON
Product Code: MF50100V1-A99-A

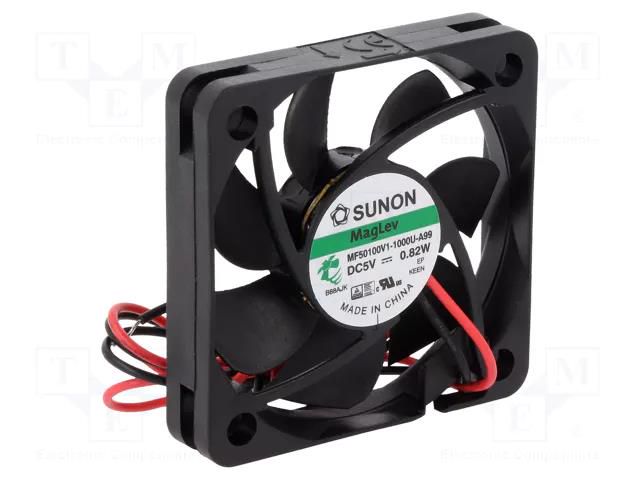

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 5VDC; 50x50x10mm; 23.32m3/h; 30.7dBA; Vapo; 5800rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 5VDC; 50x50x10mm; 23.32m3/h; 30.7dBA; Vapo; 5800rpm
Useful information
Supplier parameters
Product code
MF50100V1-A99-A
Brand
SUNON
Supplier's product code
MF50100V1-A99-A
Product ID
U-256067
Additional functions
autorestart
Current rating
0.155A
Enclosure material
thermoplastic
Fan dimensions
50x50x10mm
Fan efficiency
23.32m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.295m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
30.7dBA
Operating temperature
-10...70°C
Operating voltage
3.5...6V DC
Power consumption
0.78W
Rotational rate/speed
5800rpm
Static pressure
3.81mm H<sub>2</sub>O
Supply voltage
5V DC
Type of fan
DC
Wire size
26AWG
