Product description

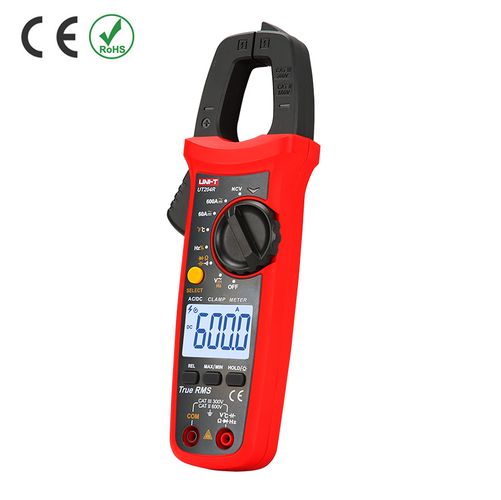

UT200R Series 400A/600A Digital Clamp Meters
UT200R series digital clamp meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC current, etc.
Models in UT200R Series: UT201R, UT202R, UT202F, UT203R, UT204R
Features of UT200R Series 400A/600A Digital Clamp Meters
Certifications: CE, UKCA, cETLus
● True RMS
● LCD backlight
● Larger screen and display digits
● 60mF large capacitance measurement (202F/204R)
Specifications of UT200R Series 400A/600A Digital Clamp Meters
|
Specifications |
Range |
UT201R |
UT202R |
UT202F |
UT203R |
UT204R |
|
AC current (A) |
0.04~400A |
±(2%+10) |
±(2%+10) |
±(2%+5) |
||
|
0.06~600A |
±(2%+10) |
±(2%+5) |
||||
|
AC current frequency (Hz) |
50Hz~100Hz |
±(1%+5) |
±(1%+5) |
±(1%+5) |
||
|
DC current (A) |
0.04~400A |
±(2%+5) |
||||
|
0.06~600A |
±(2%+5) |
|||||
|
AC voltage (V) |
600V |
±(0.8%+5) |
±(0.8%+5) |
±(0.8%+5) |
±(0.8%+5) |
±(0.8%+5) |
|
AC voltage frequency (Hz) |
10Hz~10kHz |
±(1%+5) |
±(1%+5) |
±(1%+5) |
||
|
10Hz~60kHz |
±(0.5%+2) |
±(0.5%+2) |
||||
|
DC voltage (V) |
600V |
±(0.5%+2) |
±(0.5%+2) |
±(0.5%+2) |
±(0.5%+2) |
±(0.5%+2) |
|
Resistance (Ω) |
40MΩ |
|||||
|
60MΩ |
±(0.8%+2) |
±(0.8%+2) |
||||
|
Capacitance (F) |
4mF |
±(4%+5) |
||||
|
40mF |
±(4%+5) |
|||||
|
60mF |
±(4%+5) |
±(4%+5) |
||||
|
Temperature (℃) |
-40℃~1000℃ |
±(1.5%+5) |
±(1.5%+5) |
|||
|
Frequency (Hz) |
10Hz~10MHz |
±(1%+5) |
±(0.1%+4) |
±(0.1%+4) |
||
|
Features |
||||||
|
Display count |
4000 |
4000 |
6000 |
4000 |
6000 |
|
|
Auto range |
√ |
√ |
√ |
√ |
√ |
|
|
Jaw opening |
28mm |
28mm |
28mm |
28mm |
28mm |
|
|
True RMS |
√ |
√ |
√ |
√ |
√ |
|
|
NCV |
√ |
√ |
√ |
√ |
√ |
|
|
Continuity test |
√ |
√ |
√ |
√ |
√ |
|
|
Diode |
√ |
√ |
√ |
√ |
√ |
|
|
MAX/MIN |
√ |
√ |
√ |
√ |
√ |
|
|
Relative mode |
√ |
√ |
√ |
√ |
||
|
Zero mode |
√ |
√ |
||||
|
Data hold |
√ |
√ |
√ |
√ |
√ |
|
|
Low battery indication |
√ |
√ |
√ |
√ |
√ |
|
|
Auto power off |
√ |
√ |
√ |
√ |
√ |
|
|
General Characteristics |
||||||
|
Power |
1.5V battery (R03) x 2 |
|||||
|
Display |
37mm x 25mm |
|||||
|
Product color |
Red and grey |
|||||
|
Product net weight |
UT201R/202R/202F: 248g; UT203R/204R: 235g |
|||||
|
Product size |
215mm x 63mm x 36mm |
|||||
|
Standard accessories |
Batteries, test leads, Themocouple (UT202R/204R) |
|||||
|
Standard individual packing |
Gift box, carrying bag, English manual |
|||||
|
Standard quantity per carton |
40pcs |
|||||
|
Standard carton measurement |
485mm x 295mm x 385mm |
|||||
|
Standard carton gross weight |
UT201R: 16.6kg; UT202R: 17.1kg; UT203R: 16.1kg; UT202F/UT204R: 16.7kg |
|||||
Specifications
Product description generated by artificial intelligence
UNI-T UT204A Current Clamp Meter: A Versatile Testing Tool
The UNI-T UT204A is a professional-grade current clamp meter, also known as a clamp multimeter or AC/DC clamp probe, designed for electricians, technicians, and DIY enthusiasts. This versatile instrument combines multiple functions in one compact device, making it an essential tool for various electrical testing applications.
Key Features and Functions
- AC/DC Current Measurement: Accurately measures both alternating current (AC) and direct current (DC), providing comprehensive current readings.
- Frequency Measurement: Determines the frequency of AC signals, useful for analyzing power sources and circuits.
- Temperature Measurement: Measures temperature, expanding its application to thermal analysis.
- Continuity Buzzer: Quickly identifies continuity in circuits with an audible signal.
- Diode Test: Checks the functionality of diodes, essential for semiconductor testing.
- Resistance Measurement: Measures resistance values in circuits, aiding in troubleshooting and component verification.
- CAT II and CAT III Safety Ratings: Ensures safe operation in various electrical environments.
Applications
The UT204A finds applications in a wide range of scenarios, including:
- Electrical installations and maintenance
- Industrial automation and control systems
- Automotive diagnostics
- HVAC/R systems
- General electrical troubleshooting
Why Choose the UNI-T UT204A?
The UNI-T UT204A stands out due to its:
- Versatility: Multiple measurement functions in one compact device.
- Accuracy and Reliability: Delivers precise and dependable readings.
- Ease of Use: Simple operation and intuitive interface.
- Safety: CAT II and CAT III safety ratings for safe operation.
- Durability: Built to withstand the rigors of professional use.
The UNI-T UT204A current clamp meter is a valuable asset for anyone working with electrical systems. Its comprehensive features, accuracy, and safety ratings make it a reliable and efficient tool for various testing needs.
