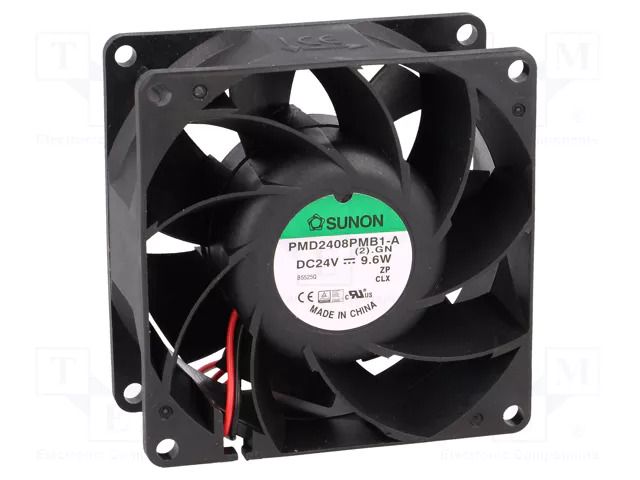

Fan: DC; axial; 24VDC; 80x80x38mm; 143m3/h; 55.2dBA; ball; 18.8mmH2O SUNON
Product Code: PMD2408PMB1A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 80x80x38mm; 143m3/h; 55.2dBA; ball; 18.8mmH2O SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 80x80x38mm; 143m3/h; 55.2dBA; ball; 18.8mmH2O
Useful information
Supplier parameters
Product code
PMD2408PMB1A
Product ID
U-291754
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
0.4A
Enclosure material
thermoplastic
Fan dimensions
80x80x38mm
Fan efficiency
143m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
E
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.3m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
55.2dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
9.6W
Rotational rate/speed
5700 (±10%)rpm
Static pressure
18.8mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
Supplier's product code
PMD2408PMB1A
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
