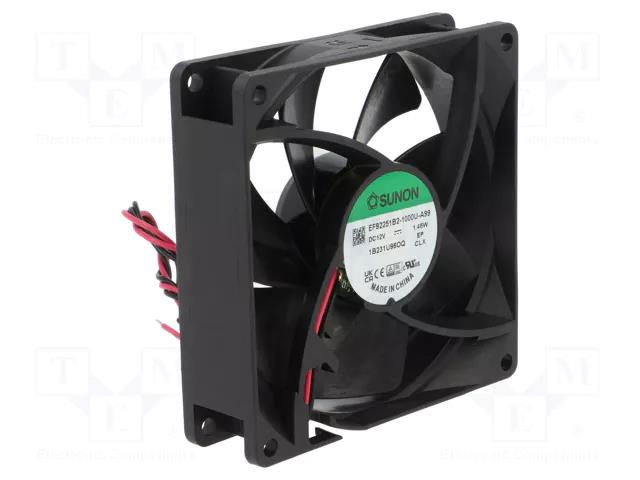

Fan: DC; axial; 12VDC; 92x92x25mm; 58.45m3/h; 37.9dBA; ball; 24AWG SUNON
Product Code: EF92251B2-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 92x92x25mm; 58.45m3/h; 37.9dBA; ball; 24AWG SUNON
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 92x92x25mm; 58.45m3/h; 37.9dBA; ball; 24AWG
Supplier parameters
Product code
EF92251B2-A99-A
Product ID
U-3032511
Additional functions
Autorestart
Current rating
104mA
Enclosure material
thermoplastic
Fan dimensions
92x92x25mm
Fan efficiency
58.45m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
37.9dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
1.25W
Rotational rate/speed
2700 (±10%)rpm
Static pressure
2.79mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
Supplier's product code
EF92251B2-A99-A
