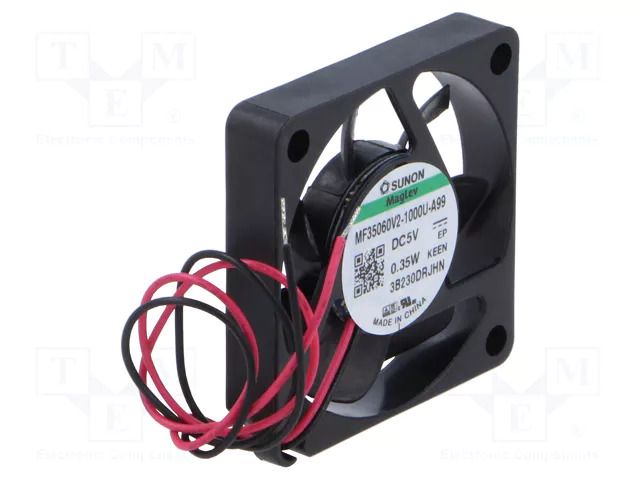

Fan: DC; axial; 5VDC; 35x35x6.5mm; 7.31m3/h; 18.3dBA; Vapo; 28AWG SUNON
Product Code: MF35060V2-A99
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 5VDC; 35x35x6.5mm; 7.31m3/h; 18.3dBA; Vapo; 28AWG SUNON
Specifications
Supplier product description
Fan: DC; axial; 5VDC; 35x35x6.5mm; 7.31m3/h; 18.3dBA; Vapo; 28AWG
Supplier parameters
Product code
MF35060V2-A99
Additional functions
autorestart
Current rating
76mA
Enclosure material
thermoplastic
Fan dimensions
35x35x6.5mm
Fan efficiency
7.31m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
18.3dBA
Operating temperature
-10...70°C
Operating voltage
2.5...6V DC
Power consumption
0.38W
Rotational rate/speed
5800 (±15%)rpm
Static pressure
1.78mm H<sub>2</sub>O
Supply voltage
5V DC
Type of fan
DC
Wire size
28AWG
Supplier's product code
MF35060V2-A99
Product ID
U-3032640
Brand
SUNON
