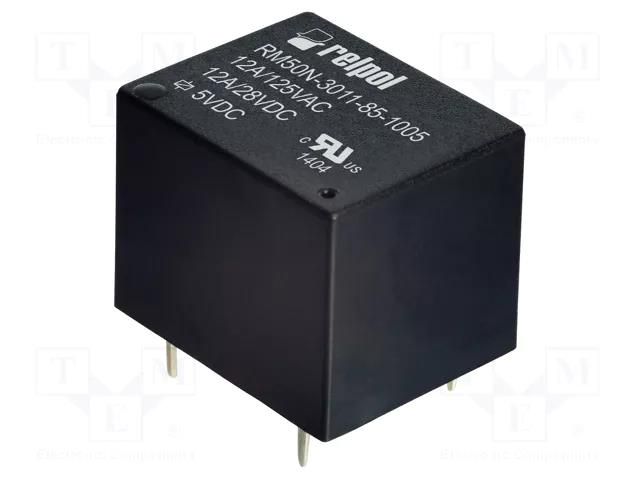

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 12A; 12A/125VAC; RM50N RELPOL
Product Code: RM50N3011851005
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPDT; Ucoil: 5VDC; 12A; 12A/125VAC; RM50N RELPOL
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 5VDC; 12A; 12A/125VAC; RM50N
Useful information
Supplier parameters
Product code
RM50N3011851005
Supplier's product code
RM50N3011851005
Product ID
U-312020
AC contacts rating @R
12A / 125V AC
Body dimensions
19x15.6x15.3mm
Coil power consumption
360mW
Coil resistance
70Ω
Coil voltage max.
6.5V DC
Coil voltage min.
3.75V DC
Contact current max.
12A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
12A / 28V DC
IP rating
IP64
Manufacturer
RELPOL
Manufacturer series
RM50N
Mounting
PCB
OEM number
2614645
Operate time
10ms
Operating temperature
-30...55°C
Rated coil voltage
5V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 28V DC
Terminal pitch
2mm
Type of relay
electromagnetic
Brand
RELPOL
