Oscilloscope 2 channels, 100MHz, 1.GSa/s, 56Mpts, 500,000wfms/s, UNI-T
Product Code: UPO1102
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

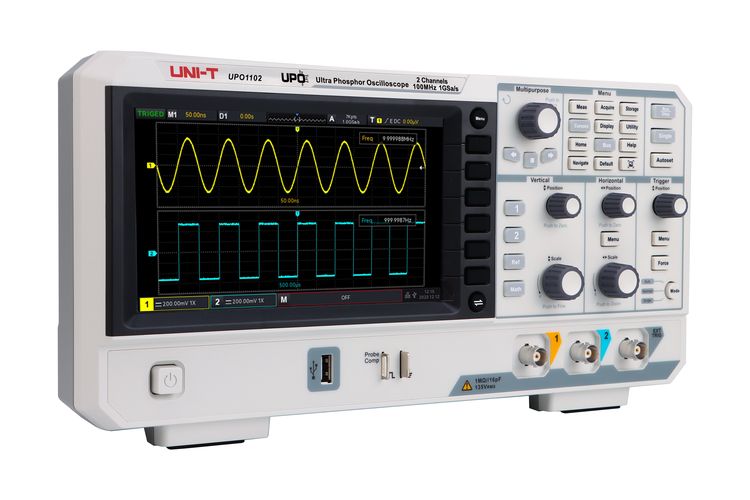

UPO1102 Digital Oscilloscope
- Bandwidth: 100MHz
- Channels: 2 Analog
- REAL-TIME SAMPLE RATE: 1GSa/s
- Rise time: ≤3.5ns
- Memory depth: 56Mpts
- Waveform capture rate: 500,000 wfms/s
UPO1002 series digital phosphor oscilloscope adopts innovative UNI-T Ultra Phosphor 2.0 with new appearance upgrade and the function of deep storage, high waveform capture rate, real-time waveform recording and playback and 256-level grayscale display. The series support DVM module, rich trigger and bus decoding functions, and support full memory hardware real-time decoding. It widely used in many fields, including embedded system design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, R&D and education.
Ultra Phosphor 2.0
Normal waveform capture rate up to 100,000wfms/s, at Fast Acquire mode the waveform capture rate goes up to 500,000wfms/s.
Long memory depth
56Mpts long memory depth for full frequency domain information at high sample rates
Multi-Scopes 2.0
Multi-Scopes 2.0 can separate the time base and voltage grid of two channels, so users can observe two completely different signals simultaneously in the same window.
Full-memory hardware real-time decoding
Full-memory hardware real-time decoding, high-efficiency analysis: Under 56Mpts deep storage, the decoding speed of 3 protocols (RS232/UART, I2C, SPI) reaches milliseconds, which is 100x faster than the traditional software decoding speed, and significantly improves the analysis efficiency.
1M-point enhanced FFT
1M-point enhanced FFT, in-depth frequency domain analysis: support multi-domain view, independent spectrum view display, multi-dimensional visualization of signal characteristics. Provides 4 traces and detector modes to meet different analysis needs. Supports automatic trace peak measurement to quickly identify key spectral features.
- Bandwidth: 100MHz
- Channels: 2 Analog
- REAL-TIME SAMPLE RATE: 1GSa/s
- Rise time: ≤3.5ns
- Memory depth: 56Mpts
- Waveform capture rate: 500,000 wfms/s
Specification
| Feature | Specification |
|---|---|
| Model Number | UPO1102 |
| Scope Type | DSO |
| Bandwidth | 100MHz |
| Channels | 2 Analog |
| Real-Time Sample Rate | 1GSa/S |
| Rise Time | ≤3.5ns |
| Memory Depth | 56Mpts |
| capture rate | 500,000wfms/s |
| Input impedance | (1 MΩ ± 2%)|| (16 pF ± 2 pF) |
| Acquisition mode | Normal, peak detect, high resolution, and averaging |
| Vertical Scale @1MΩ | 500μV/div to 20V/div |
| # Automatic Measurements | 36 |
| Logic Pod Included | No |
| Waveform Generator | No |
| Included Bus Protocols | RS232, UART, I2C, SPI |
| Optional Bus Protocols | None |
| Logic Pod Included | Not Available |
| Display | 7-inch TFT |
| Touchscreen | No |
| Warranty | 3 years |
| Shipping Dimensions (L x W x H) | 336mm x 164mm x 105mm |
| Shipping Weight | <2.5 kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable, Passive probe 100MHz * 2(UT-P04) |
| Optional accessories | High voltage probe (UT-V23, UT-P20, and UT-P21) High-Voltage Differential Probes (UT-P30, UT-P31, UT-P32, UT-P33, UT-P35, and UT-P36) Current Probe (UT-P40, UT-P41, UT-P42, UT-P43, and UT-P44) |
| Optional software | UPO1002X-1MT2(Upgrade Bandwith to 200MHz) |
Comparison
| Model | UPO1102 | UPO1202 |
| Bandwidth | 100MHz | 200MHz |
| Channels | Analog 2 | |
| Real Time Sample | 1 GSa/s | |
| Max. Memory Depth | 56 Mpts | |
| Waveform Capture Rate | 500,000wfms/s | |
Useful information
Specifications
SKU
440976
Weight
3.7 kg.
Barcodes
6935750511275
Height, mm
138
Brand
Width, mm
306
Product code
UPO1102
Depth, mm
124
