Connector: PCB terminal block; terminal; 17.5A; 320V; straight DEGSON ELECTRONICS
Product Code: DG212V-THR-3.5-02P

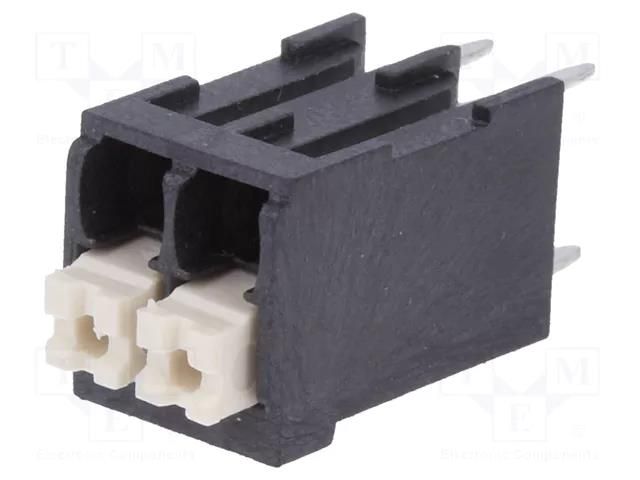

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Connector: PCB terminal block; terminal; 17.5A; 320V; straight DEGSON ELECTRONICS
Useful information
Specifications
Supplier product description
Connector: PCB terminal block; terminal; 17.5A; 320V; straight
Useful information
Supplier parameters
Product code
DG212V-THR-3.5-02P
Brand
DEGSON ELECTRONICS
Supplier's product code
DG212V-THR-3.5-02P
Product ID
U-163385
Body material
LCP
Colour
black
Conform to the norm
UL
Connector
terminal
Connector pinout layout
1x2
Connector variant
with push button
Contact material
phosphor bronze
Contact plating
tinned
Contacts pitch
3.5mm
Current rating
17.5A
Depth
8.5mm
Electrical mounting
THT
Flammability rating
UL94V-0
Height
12.3mm
Length
7.7mm
Manufacturer
DEGSON ELECTRONICS
Mechanical mounting
on PCBs
Number of ways
2
Operating temperature
-40...105°C
Rated voltage
320V
Spatial orientation
straight
Type of connector
PCB terminal block
Wire cross-section
0.2...1.5mm<sup>2</sup>
Wire size
24AWG...16AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
