Relay: electromagnetic; DPDT; Ucoil: 24VDC; 3A; 0.5A/125VAC; D2N TE Connectivity
Product Code: D2N24-1440

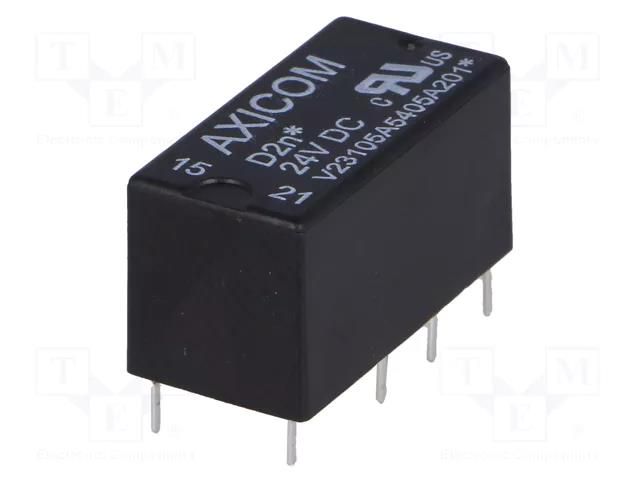

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; 3A; 0.5A/125VAC; D2N TE Connectivity
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; 3A; 0.5A/125VAC; D2N
Useful information
Supplier parameters
Product code
D2N24-1440
Brand
TE Connectivity
Supplier's product code
D2N24-1440
Product ID
U-158334
AC contacts rating @R
0.5A / 125V AC
Body dimensions
20.3x10.1x11.43mm
Coil power consumption
400mW
Coil resistance
1.44kΩ
Coil voltage max.
38.3V DC
Coil voltage min.
16.8V DC
Contact current max.
3A
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
1A / 30V DC
Manufacturer
TE Connectivity
Manufacturer series
D2N
Mechanical durability
150000000 cycles
Mounting
PCB
Operate time
10ms
Operating temperature
-25...70°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
10ms
Switched voltage
max. 220V DC
Switching capacity
60W
Terminal pitch
5mm
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
