Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 20A FINDER
Product Code: 56.32.9.024.0000

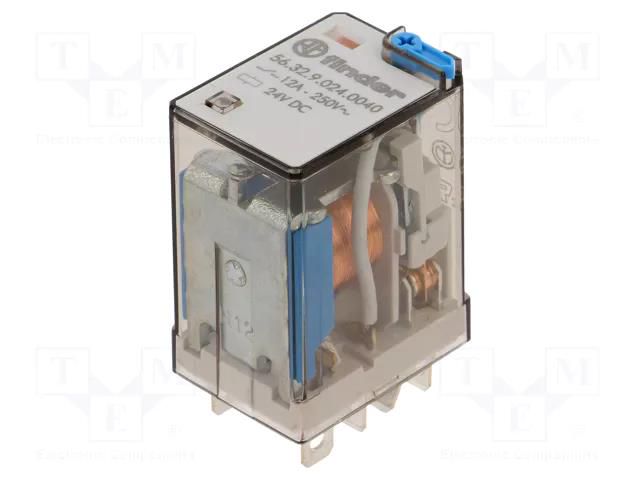

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 20A FINDER
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 20A
Useful information
Supplier parameters
Product code
56.32.9.024.0000
AC contacts rating @R
12A / 250V AC
Body dimensions
27.7x20.7x37.7mm
Coil current
40mA
Coil power consumption
1W
Coil resistance
0.6kΩ
Contact current max.
20A
Contact material
AgNi
Contacts configuration
DPDT
DC contacts rating @R
12A / 30V DC
Leads
connectors
Leads dimensions
4.8x0.5mm
Manufacturer
FINDER
Manufacturer series
56.32
Mounting
socket
Operating temperature
-40...70°C
Rated coil voltage
24V DC
Relay variant
industrial
Switched voltage
max. 220V DC
Type of relay
electromagnetic
Brand
FINDER
Supplier's product code
56.32.9.024.0000
Product ID
U-91753
