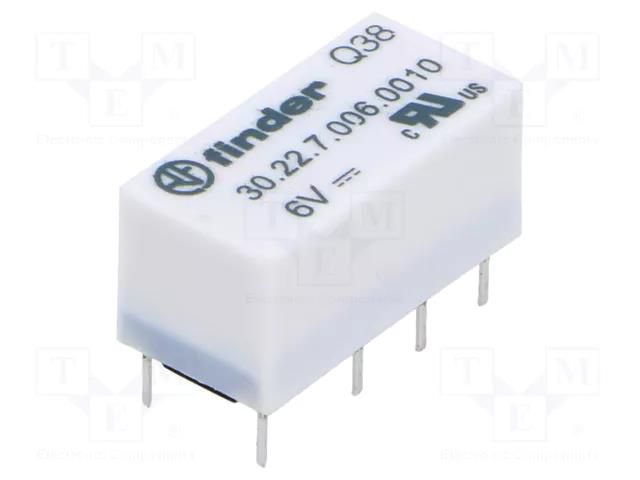

Relay: electromagnetic; DPDT; Ucoil: 6VDC; Icontacts max: 3A; 30.22 FINDER
Product Code: 30.22.7.006.0010
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; DPDT; Ucoil: 6VDC; Icontacts max: 3A; 30.22 FINDER
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 6VDC; Icontacts max: 3A; 30.22
Useful information
Supplier parameters
Product code
30.22.7.006.0010
AC contacts rating @R
2A / 125V AC
Body dimensions
20.2x10.9x10mm
Coil current
33mA
Coil power consumption
200mW
Coil resistance
180Ω
Contact current max.
3A
Contact material
AgNi + Au
Contacts configuration
DPDT
DC contacts rating @R
2A / 24V DC
Manufacturer
FINDER
Manufacturer series
30.22
Mounting
PCB
Operating temperature
-40...85°C
Rated coil voltage
6V DC
Relay variant
miniature
Switched voltage
max. 110V DC
Type of relay
electromagnetic
Supplier's product code
30.22.7.006.0010
Product ID
U-3751697
Brand
FINDER
