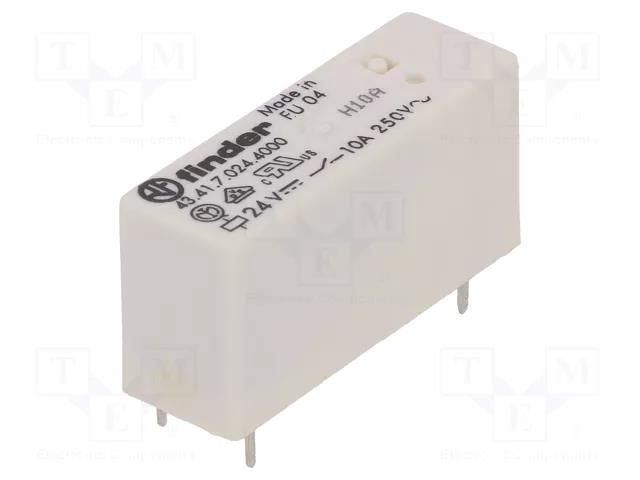

Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 15A FINDER
Product Code: 43.41.7.024.4000
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 15A FINDER
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 15A
Useful information
Supplier parameters
Product code
43.41.7.024.4000
Brand
FINDER
Supplier's product code
43.41.7.024.4000
Product ID
U-89471
AC contacts rating @R
10A / 250V AC
Body dimensions
30.2x15.4x10.2mm
Coil current
10.9mA
Coil power consumption
250mW
Coil resistance
2.2kΩ
Contact current max.
15A
Contact material
AgSnO<sub>2</sub>
Contacts configuration
SPDT
DC contacts rating @R
10A / 30V DC
Manufacturer
FINDER
Manufacturer series
43.41
Mounting
PCB
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay variant
miniature
Switched voltage
max. 220V DC
Terminal pitch
3.2mm
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
