Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; max.300VAC ZETTLER
Product Code: AZ2150-1A-12DE

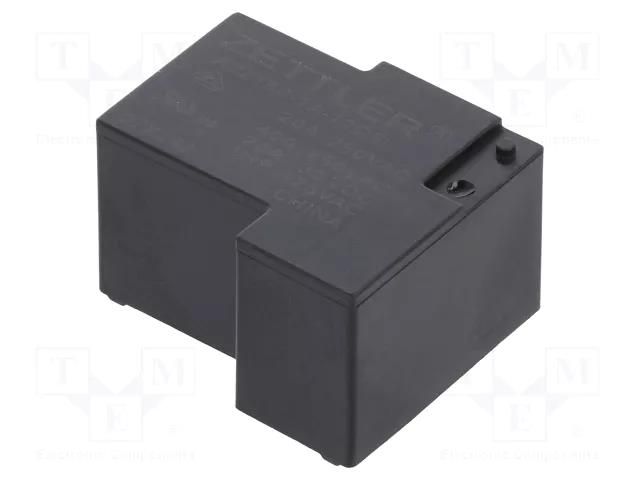

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; max.300VAC ZETTLER
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; max.300VAC
Useful information
Supplier parameters
Product code
AZ2150-1A-12DE
AC contacts rating @R
40A / 250V AC
Body dimensions
31.8x26.9x19.1mm
Coil power consumption
0.9W
Coil resistance
155Ω
Contact material
AgCdO
Contacts configuration
SPST-NO
Manufacturer
ZETTLER
Manufacturer series
AZ2150
Mounting
PCB
Operating temperature
-55...85°C
Rated coil voltage
12V DC
Relay variant
power
Brand
ZETTLER
Supplier's product code
AZ2150-1A-12DE
Product ID
U-121195
