Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 15A; 10A/277VAC ZETTLER
Product Code: AZ943-1AH-24D

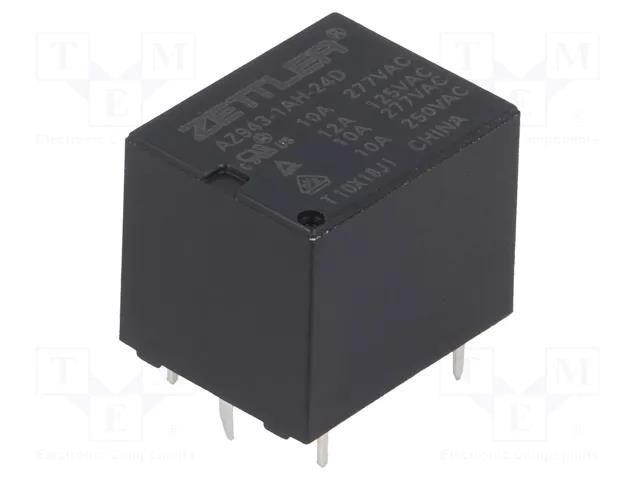

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 15A; 10A/277VAC ZETTLER
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 15A; 10A/277VAC
Useful information
Supplier parameters
Product code
AZ943-1AH-24D
Supplier's product code
AZ943-1AH-24D
Product ID
U-121375
AC contacts rating @R
10A / 277V AC
Body dimensions
19x15.3x15.7mm
Coil power consumption
203mW
Coil resistance
1.6kΩ
Contact current max.
15A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
10A / 30V DC
IP rating
IP64
Manufacturer
ZETTLER
Manufacturer series
AZ943
Mounting
PCB
Operate time
10ms
Operating temperature
-40...70°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 30V DC
Terminal pitch
2mm
Type of relay
electromagnetic
Brand
ZETTLER
