Relay: interface; DPDT; Ucoil: 12VDC; 8A; 8A/230VAC; 8A/24VDC; PI84 RELPOL
Product Code: PI84012DC00LD

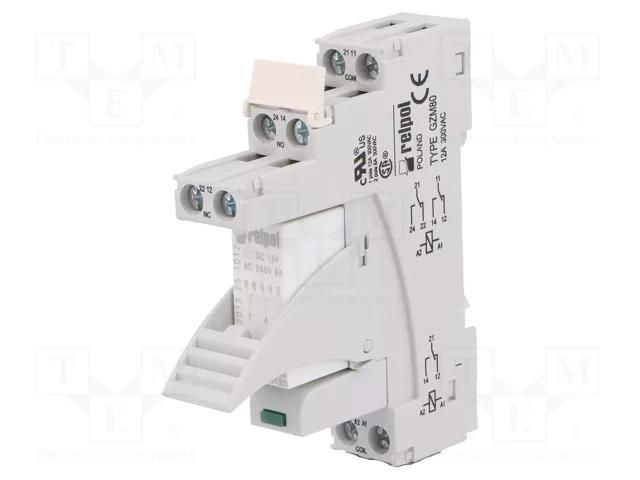

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: interface; DPDT; Ucoil: 12VDC; 8A; 8A/230VAC; 8A/24VDC; PI84 RELPOL
Useful information
Specifications
Supplier product description
Relay: interface; DPDT; Ucoil: 12VDC; 8A; 8A/230VAC; 8A/24VDC; PI84
Useful information
Supplier parameters
Product code
PI84012DC00LD
Supplier's product code
PI84012DC00LD
Product ID
U-287782
AC contacts rating @R
8A / 230V AC
Body dimensions
78.1x15.9x66.5mm
Contact material
AgNi
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
8A / 24V DC
Kit contents
holder
Leads
screw terminals
Manufacturer
RELPOL
Manufacturer series
PI84
Max. operating current
8A
Mounting
on panel
OEM number
854909
Operate time
7ms
Operating temperature
-40...85°C
Rated coil voltage
12V DC
Relay variant
Relay set
Release time
3ms
Switched voltage
max. 300V DC
Switching capacity
2kVA
Type of relay
interface
Brand
RELPOL
