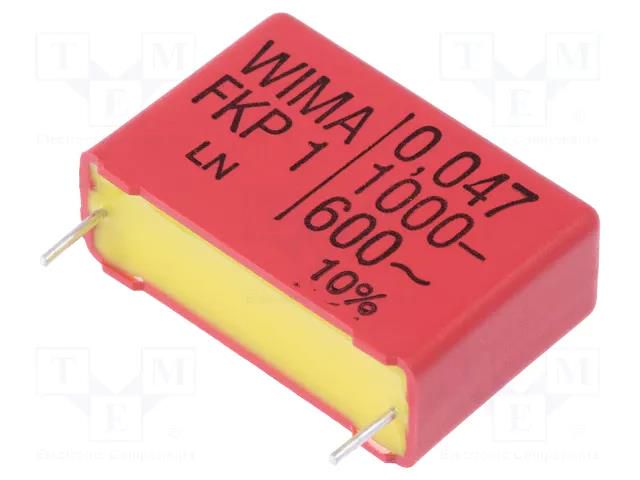

Capacitor: polypropylene; 47nF; 1000VDC; 600VAC; 11x21x31.5mm; THT WIMA
Product Code: FKP1-47N/1000
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Capacitor: polypropylene; 47nF; 1000VDC; 600VAC; 11x21x31.5mm; THT WIMA
Useful information
Specifications
Supplier product description
Capacitor: polypropylene; 47nF; 1000VDC; 600VAC; 11x21x31.5mm; THT
Useful information
Supplier parameters
Product code
FKP1-47N/1000
Body dimensions
11x21x31.5mm
Capacitance
47nF
Capacitor application
high frequency circuits
Capacitors features
low dielectric loss factor
Climate class
55/100/56
Flammability rating
UL94V-0
Kind of material
flame retardant
Manufacturer
WIMA
Max. operating voltage
1kV DC
Mounting
THT
Operating temperature
-55...100°C
Pulse resistance
11kV/μs
Terminal pitch
27.5mm
Type of capacitor
polypropylene
Tolerance
±10%
Brand
WIMA
Supplier's product code
FKP1-47N/1000
Product ID
U-189545
