Product description

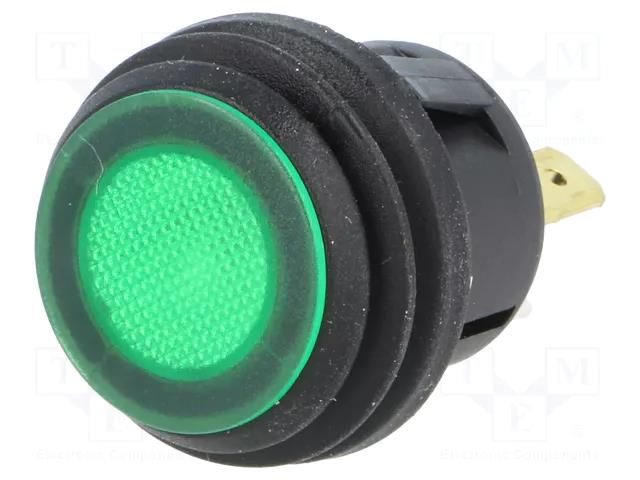

Switch: push-button; Pos: 2; SPST-NO; 6A/250VAC; OFF-ON; IP65; green SCI
Useful information
Specifications
Supplier product description
Switch: push-button; Pos: 2; SPST-NO; 6A/250VAC; OFF-ON; IP65; green
Useful information
Supplier parameters
Product code
R13527D2B02BG
Brand
SCI
Supplier's product code
R13527D2B02BG
Product ID
U-301465
AC contacts rating @R
6A / 250V AC
AC test voltage
1.5kV
Actuator colour
green
Backlight colour
green
Body dimensions
Ø17.5x18mm
Body material
polyamide
Button shape
round
Contacts configuration
SPST-NO
Flammability rating
UL94V-2
Illumination
neon lamp
Illumination voltage
230V
IP rating
IP65
Leads
connectors
Leads dimensions
4.8x0.8mm
Manufacturer
SCI
Manufacturer series
R13-527
Max. contact resistance
:50mΩ
Mounting
on panel
Mounting hole diameter
Ø20.2mm
Number of positions
2
Operating temperature
-25...70°C
Panel thickness
max. 3mm
Stable positions number
2
Switching method
OFF-ON
Terminals plating
silver plated
Type of switch
push-button
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
