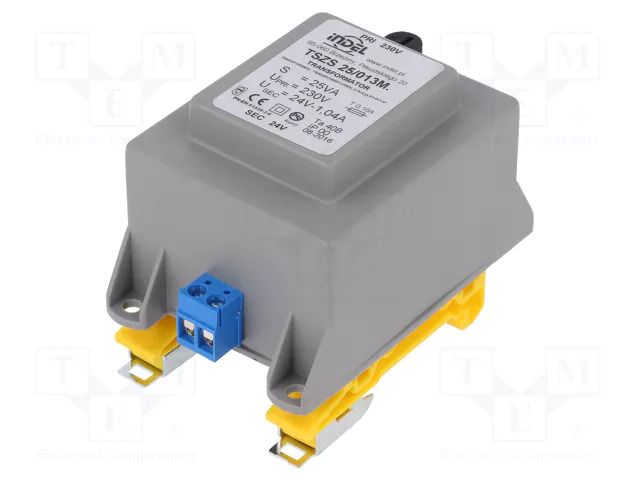

Transformer: encapsulated; 25VA; 230VAC; 24V; 1.04A; IP00; A: 63.6mm INDEL
Product Code: TSZS25/24V
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Transformer: encapsulated; 25VA; 230VAC; 24V; 1.04A; IP00; A: 63.6mm INDEL
Useful information
Specifications
Supplier product description
Transformer: encapsulated; 25VA; 230VAC; 24V; 1.04A; IP00; A: 63.6mm
Useful information
Supplier parameters
Product code
TSZS25/24V
Supplier's product code
TSZS25/24V
Product ID
U-362725
A dimension
63.6mm
A1 dimension
41.8mm
B dimension
53.6mm
B1 dimension
35.8mm
C dimension
47.2mm
C1 dimension
37.7mm
Conform to the norm
PN EN 61558
D dimension
72.5mm
D1 dimension
43.5mm
E dimension
81.8mm
Electrical insulation strength
4kV/60s
Flammability rating
UL94V-0
Insulation class
II
IP rating
IP00
Leads
terminal block
Manufacturer
INDEL
Mounting
for DIN rail mounting
Power
25VA
Primary voltage
230V AC
Secondary voltage 1
24V
Secondary winding current 1
1.04A
Thermal class
Ta40B
Type of transformer
encapsulated
Brand
INDEL
