UTP cabel Hikvision CAT 6 Eca (0.55mm, 305m, indoor use) DS-1LN6-UU
Product Code: KRUTP6HIK0565ORNG

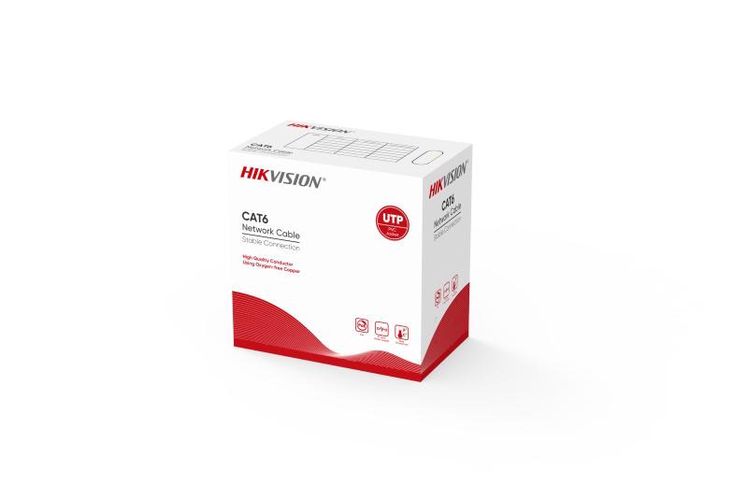

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
UTP cabel Hikvision CAT 6 Eca (0.55mm, 305m, indoor use) DS-1LN6-UU
Specifications
Supplier product description
- Full diameter 305 m CAT6 network cable
- Core diameter: 0.565mm
- Excellent transmission performance using solid copper
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance
- Great PVC flame resistance.
- Conductor
- MaterialSolid-Bare Copper,Content 99.95%,
- Nom.O.D.(mm)0.565±0.005
- General
- Carton DimensionPer request
- Core Color1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,
- Drain wireNo
- Electrical Characteristics (20℃)1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0,
- PackingWooden Tray & Carton
- Packing length305±1.5m
- Rip-cordYes
- Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
- Insulation
- Diameter1.02±0.05mm
- MaterialHDPE
- Sheath
- ColorOrange RAL2003
- External O.D.6.2±0.4 mm
- MaterialPVC(complies RoHS),CM
- SurfaceClean,Frap,Satiation
- Thickness0.55±0.05 mm
- Surface Printing
- ColorBlack
- Letter height3.0±0.3mm
- Print error & Space≤±0.5%，1m
Supplier parameters
Product code
KRUTP6HIK0565ORNG
Category
Network cables
Brand
Hikvision
Supplier's product code
KRUTP6HIK0565ORNG
Product ID
U-4460851
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
