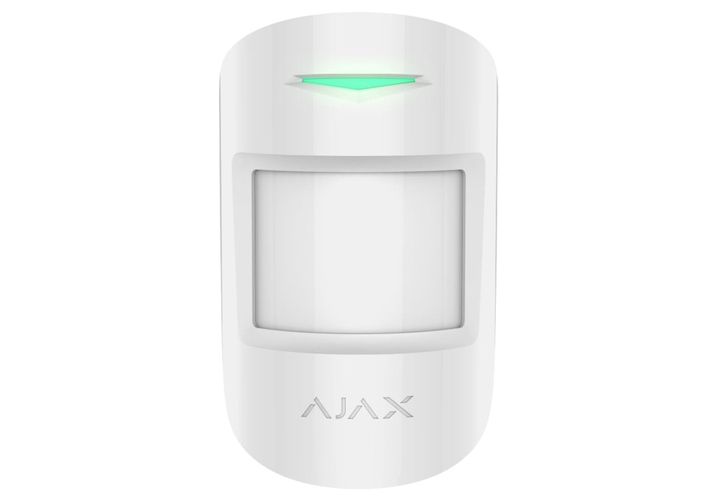

Wireless motion detector AJAX MotionProtect Plus (White)
Product Code: AJMOTIONPPW
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Wireless motion detector AJAX MotionProtect Plus (White)
Specifications
Supplier product description
- Type: Wireless motion detector
- Model: MotionProtect Plus
- Brand: Ajax
- Color: White
- Sensor types: PIR + microwave
- Motion detection range: 12 m
- Detection angle: 88.5°
- Pet immunity: Up to 20 kg
- Communication
- Jeweller communication technologyProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced sabotage protection., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
- Frequency bands866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz * 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
- Maximum effective radiated power (ERP)up to 20 mW, Automatic power control to reduce power consumption and radio interference.
- Radio signal modulationGFSK
- Radio communication rangeup to 3,900 ft, Between the device and a hub (or a range extender) in an open space., Calculate radio communication range at the facility
- Encrypted communicationAll stored and transmitted data are protected by block encryption featuring a dynamic key.
- Frequency hoppingTo prevent radio interference and jamming., Learn more
- Detection
- Sensitive elementPIR sensor, microwave sensor, K-band microwave sensor to prevent false alarms caused by thermal interference. Operation frequency: 24 GHz.
- Motion detection distanceup to 39 ft, When installed at the height of 7.9 ft.
- Motion detection anglehorizontal: 88.5°
- Motion detection speedfrom 1 to 6.6 ft/s, The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
- Sensitivity3 levels, Adjusted by a PRO or a user with admin rights in the Ajax app.
- Pet immunityweight: up to 44 lb height: up to 1.6 ft, Learn more
- False alarm preventionSmartDetect, Software algorithm., Learn more
- Temperature compensationEffective motion detection at temperatures from 14 °F to 104 °F., Learn more
- Sabotage protection
- Tamper alarmNotifications on attempts to detach the detector from the surface or remove it from the mounting panel., Learn more
- Protection against spoofingdevice authentication
- Communication loss detectionafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
- Power supply
- Battery1 × CR123A, Pre-installed.
- TypeType C.
- Detector’s operating voltage range2.1−3.3 V⎓
- Detector’s nominal operating voltage3 V⎓
- Quiescent detector’s current consumption at nominal voltage31 μA
- Maximum detector’s current consumption at nominal voltage62 mA
- Full battery capacity1,600 mAh
- Low battery voltage2.5 V⎓
- Low battery recovery voltage2.7 V⎓
- End-of-life battery voltage2.1 V⎓, The device is switched off.
- End-of-life battery capacity300 mAh
- Calculated battery lifeup to 5 years, Learn more
- ManufacturerHuiderui or Panasonic, UL listed.
- Enclosure
- Dimensions4.33" × 2.56" × 1.97"
- Weight3.39 oz
- Operating temperature rangefrom 14 °F to 104 °F, Temperature range from 32 °F (0 °C) to 120 °F (49 °C) is certified according to UL/ULC standards.
- Operating humidityup to 75%, Humidity of up to 93% is certified according to UL/ULC standards.
- Protection classIP50
Supplier parameters
Product code
AJMOTIONPPW
Brand
AJAX
Category
Sensors
Supplier's product code
AJMOTIONPPW
Product ID
U-4625759
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
